REF: 682R115011100

Patented BLUE-TEC Coating and ZYB Geometry with End-Cutting Capability

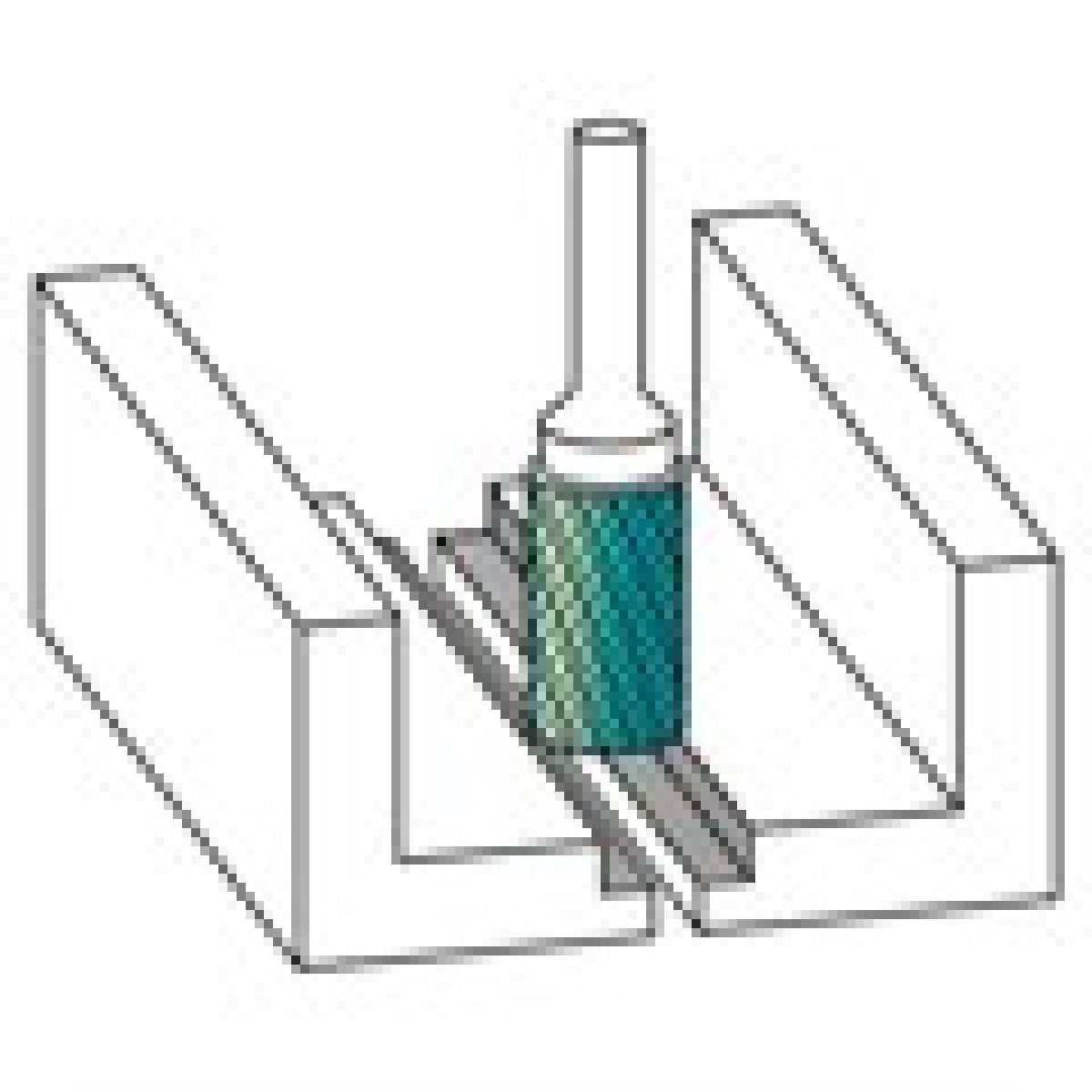

The BLUE-TEC coating acts as a powerful thermal and anti-friction shield, significantly extending the service life of the cutting edges compared to uncoated tools. This prevents cold welding of chips and enables optimal dry machining performance on demanding materials such as stainless steel, titanium alloys, nickel alloys, and cast iron. Its ZYB end-cut configuration enables the finishing of 90° internal angles and flat bottoms without requiring tool changes.

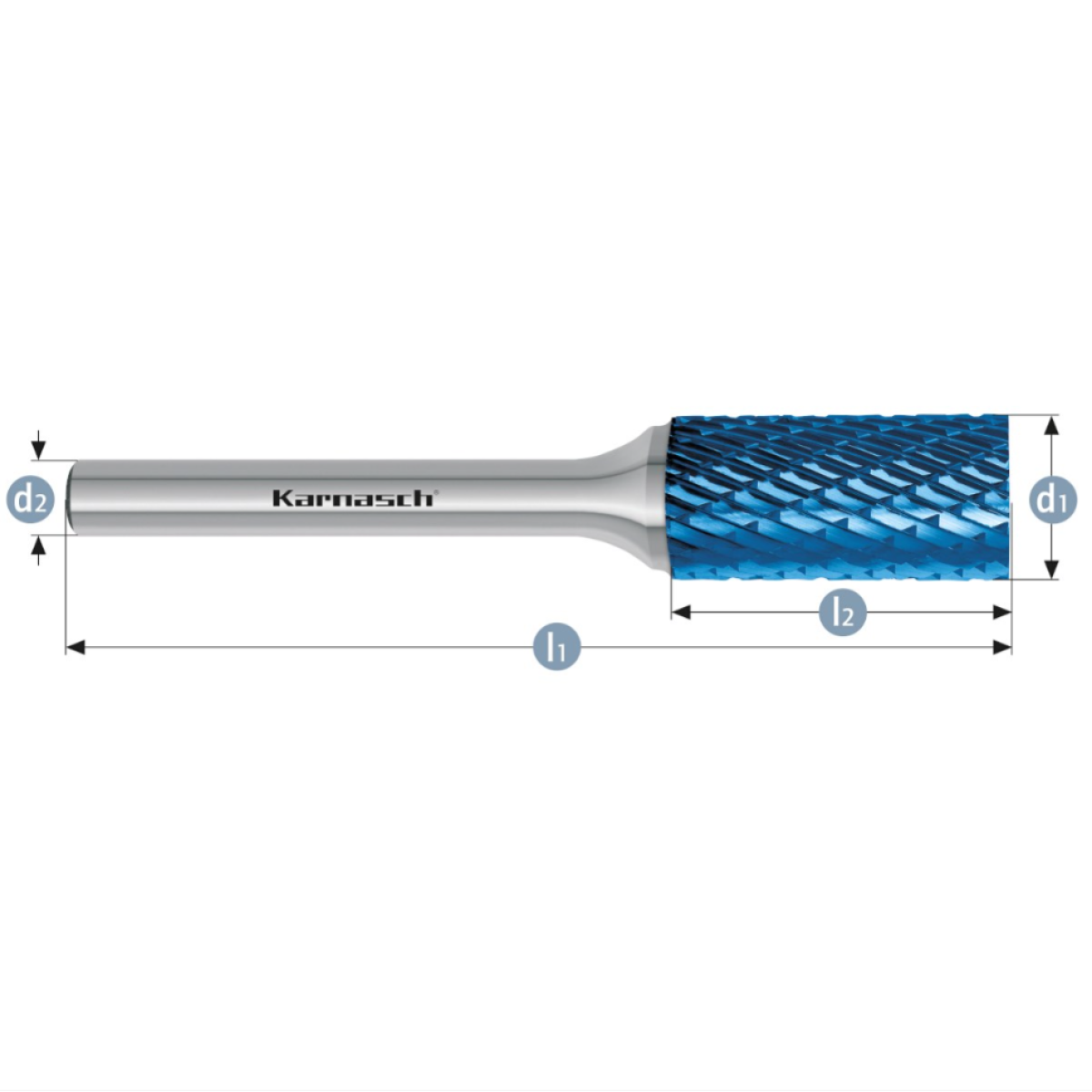

D1 = 2 mm

D2 = 3 mm

L1 = 38 mm

L2 = 11 mm

Rotary burr, ZYB, with end cut, HP3 cut, Blue-Tec coating

PRODUCT DETAILS:

HP-3-CUT

BLUE-TEC Coating:

The patented BLUE-TEC coating, designed specifically for burrs, provides exceptional service life and excellent performance on all metals.

Technical specifications:

• Results of the most widely used universal cut style:
• High cutting action via cross-cut style
• Smooth operation
• Short chips
• For use on all ferrous materials such as:
  • Cast iron - Steel < 60 HRC
  • Stainless steel (INOX)
  • Nickel-based and titanium alloys
  • Copper
  • Brass
  • Bronze
