REF: 682R115011095

Patented BLUE-TEC Coating and Front-End Cut (ZYB)

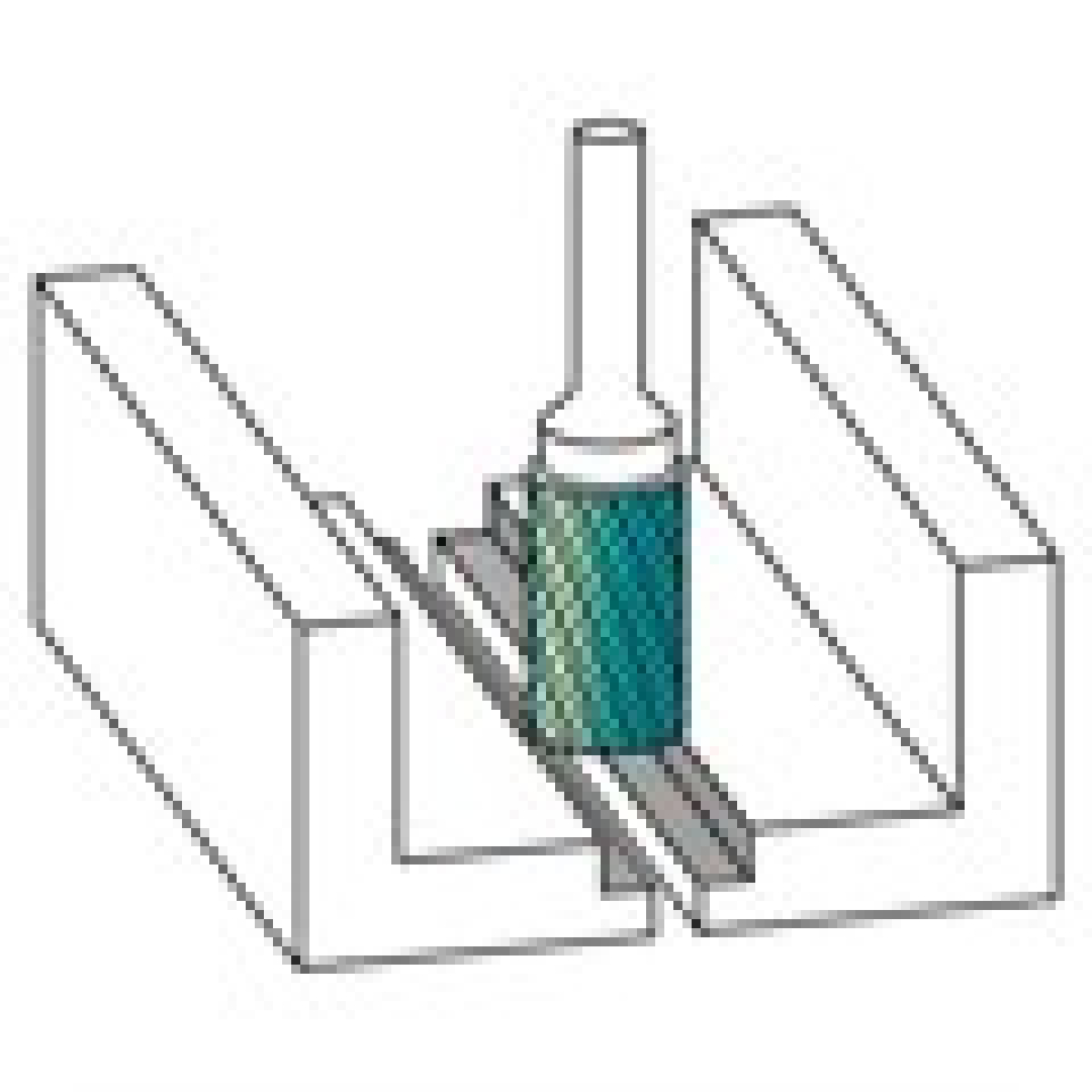

The BLUE-TEC coating acts as a thermal and anti-friction shield on the cutting edges, protecting the tool against premature wear and preventing chip adhesion during heavy-duty machining of demanding materials (stainless steel, titanium, nickel alloys, and cast iron). The ZYB end-cut configuration expands operational capabilities, allowing for the machining of flat bottoms and internal angles without the need for a tool change.

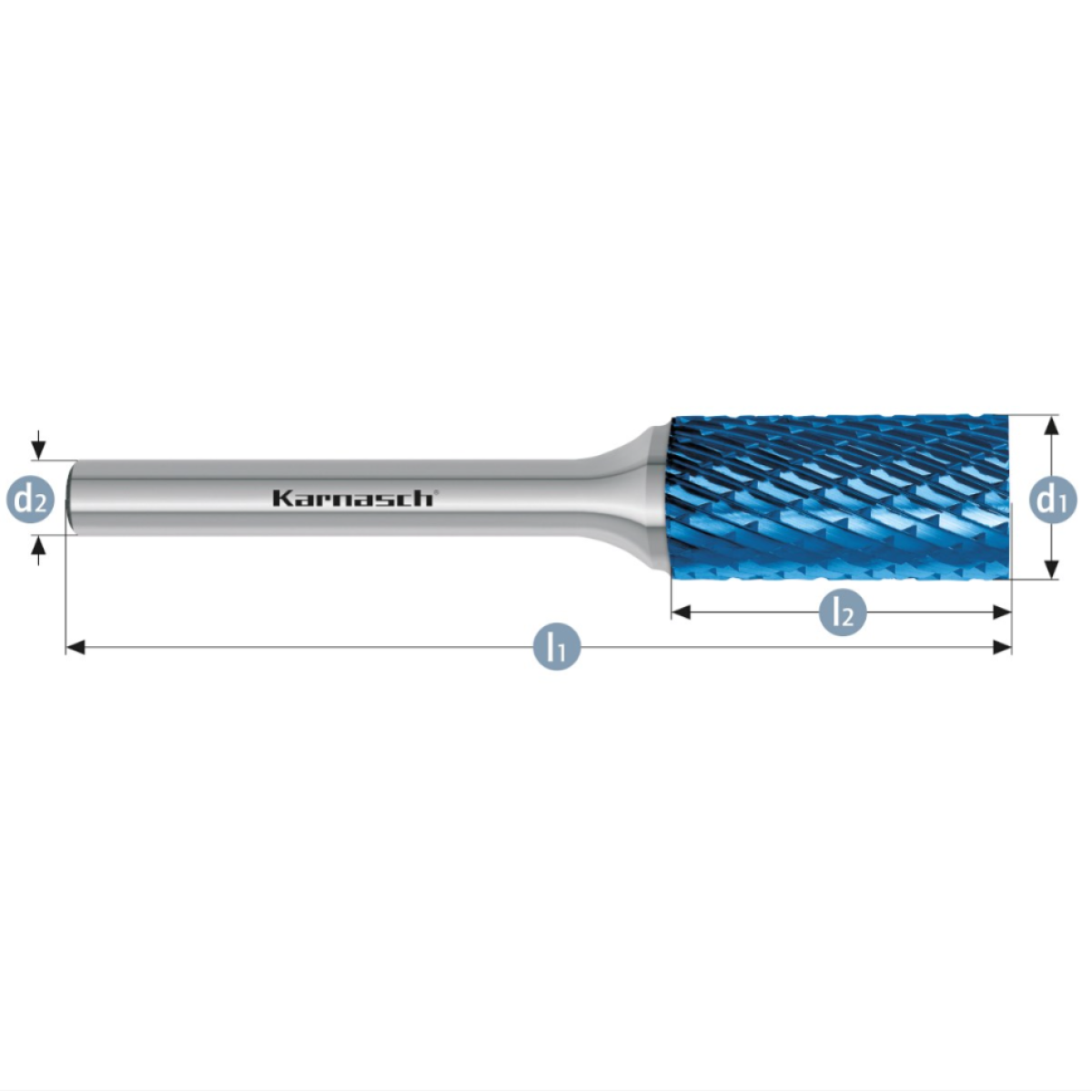

D1 = 10 mm

D2 = 6 mm

L1 = 70 mm

L2 = 25 mm

Rotary burr, ZYB, with end cut, HP3 cut, Blue-Tec coating

PRODUCT DETAILS:

HP-3-CUT

BLUE-TEC Coating:

The patented BLUE-TEC coating, designed specifically for burrs, provides exceptional service life and excellent performance across all metals.

Technical specifications:

• Results from the most widely used universal cut style:
• High cutting action via cross-cut style
• Smooth operation
• Short chips
• For use on all ferrous materials such as:
  • Cast iron - Steel < 60 HRC
  • Stainless steel (INOX)
  • Nickel-based and titanium alloys
  • Copper
  • Brass
  • Bronze
