REF: 0381TCMT1617

Product Description

The TCMT board 16T304-MM VP15TF from Mitsubishi Materials is Designed to deliver superior performance in turning operations of steel, stainless steel, and difficult-to-cut materials.

Made of high-quality carbide, it features the PVD VP15TF coating, renowned for its excellent wear resistance, thermal stability and chip control, enabling high productivity even under demanding conditions.

The MM chipbreaker ensures efficient chip evacuation and an optimal surface finish, reducing the risk of vibrations and extending tool life.

Ideal for finishing and semi-finishing operations on CNC and automatic lathes.

Features and Benefits

• VP15TF (PVD) coating: maximum wear resistance and stability at high temperatures.
• MM Chipbreaker: Precise chip control and fine finishing.
• Base material: High-quality carbide for stable cuts.
• Applications: Steel, stainless steel, heat-resistant alloys.
• High productivity with minimal need for change of inserts.

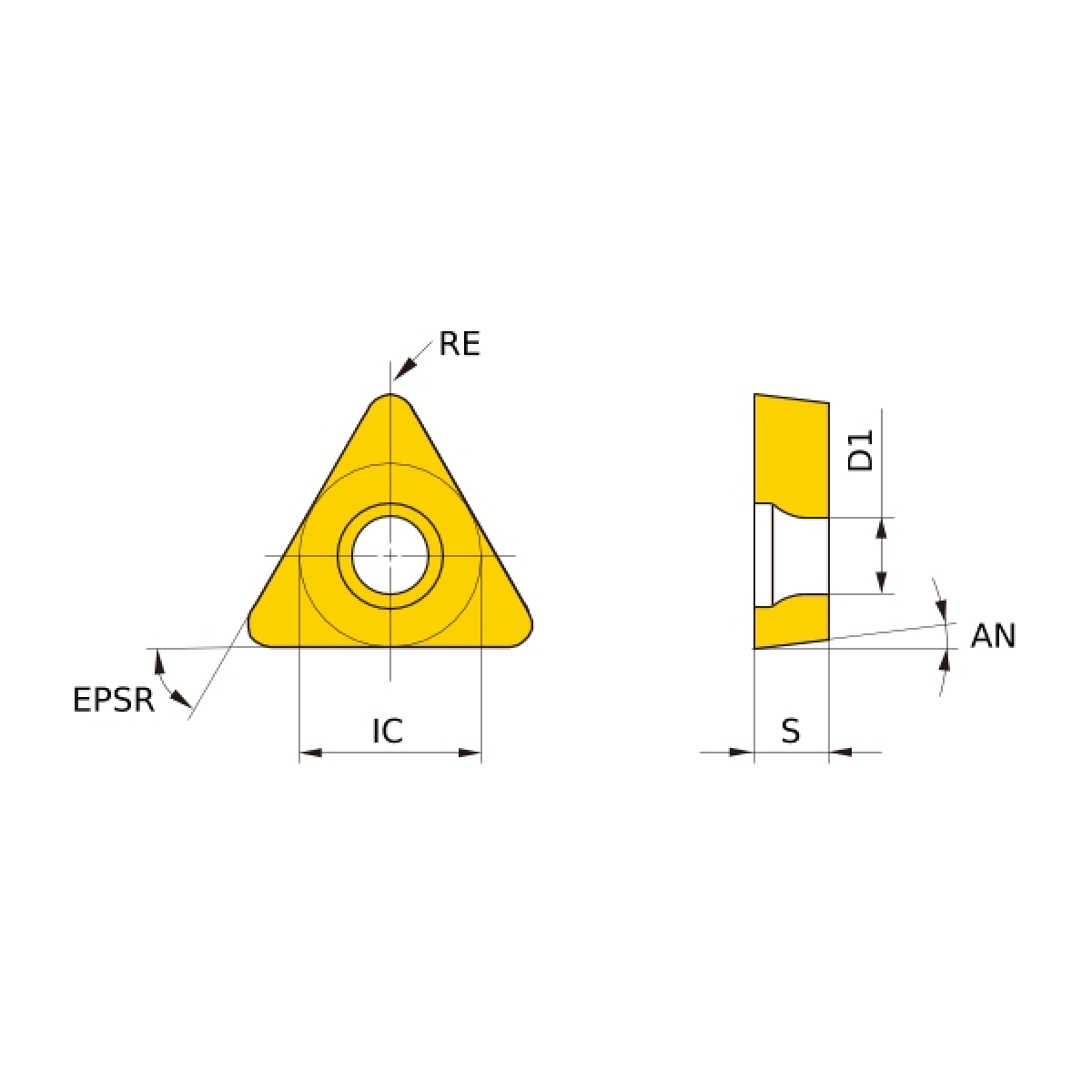

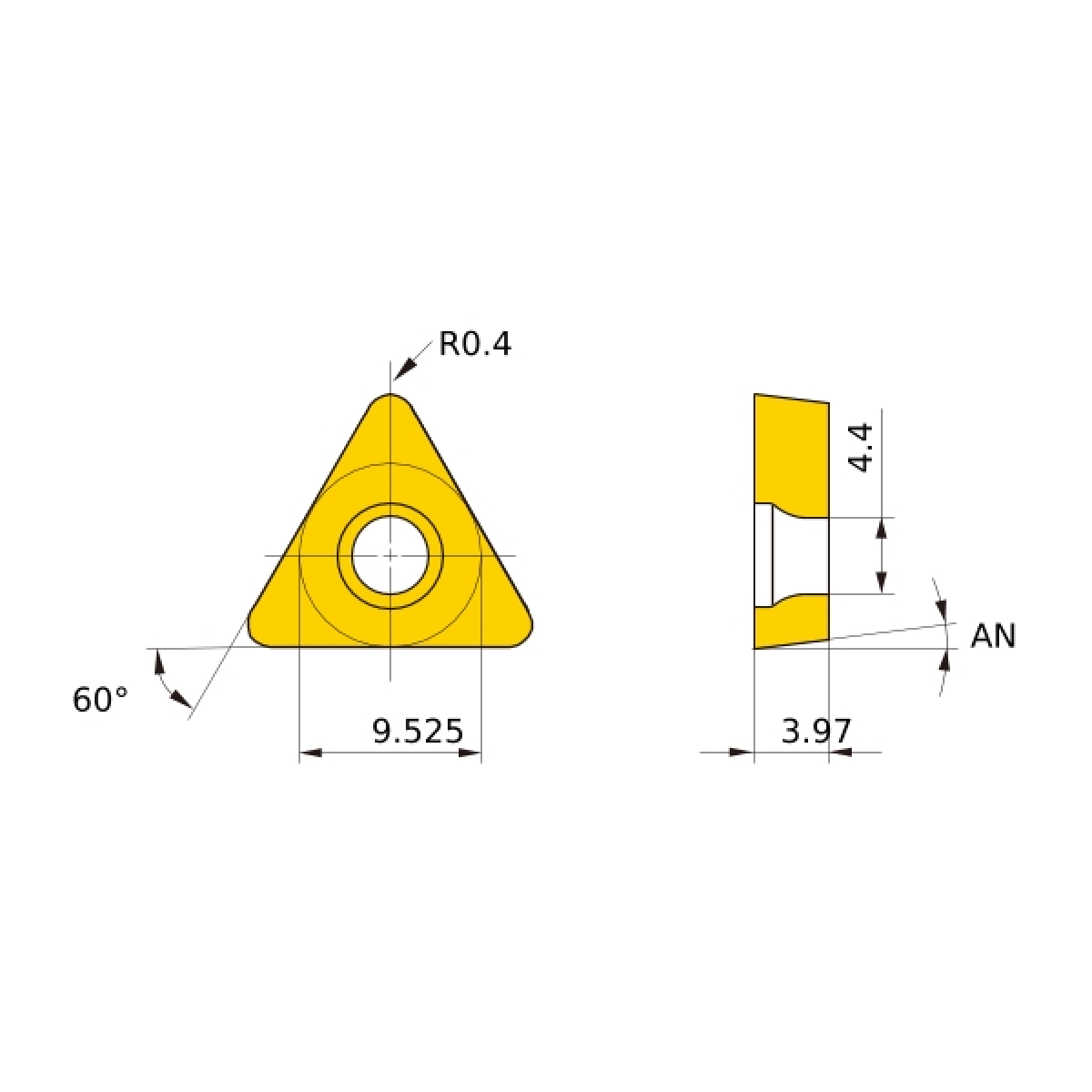

Diameter (Unit)
Quality name	Hard Metal
Quality	VP15TF
ANSI	TCMT32.51MM
Hand	N
existence
Unit length	M
D1	4.4
IC	9,525
EPSR	60°
AN	7°
S	3.97
RE	0.4
Chipbreaker	MM
