HCut Steel Profile Laser Cutting Machine

REF:

Bodor HCut – High-performance model | Steel profile laser cutting machine


“Extraordinary performance for extraordinary achievements”


  • Six-in-one: Customized for processing H-beam steel, the U 10 Pro combines six production processes in a single operation to maximize processing efficiency.

  • Automatic Operation: From loading to unloading, the Bodor HCut features intelligent automatic processing, reducing both labor and time investment.

  • Doubled Efficiency: Shorter loading time, reduced picking and sorting time, and stress-free pattern unbundling easily double your processing efficiency.

Ask for quotation

Any questions? Contact us

Información adicional

  • Charging

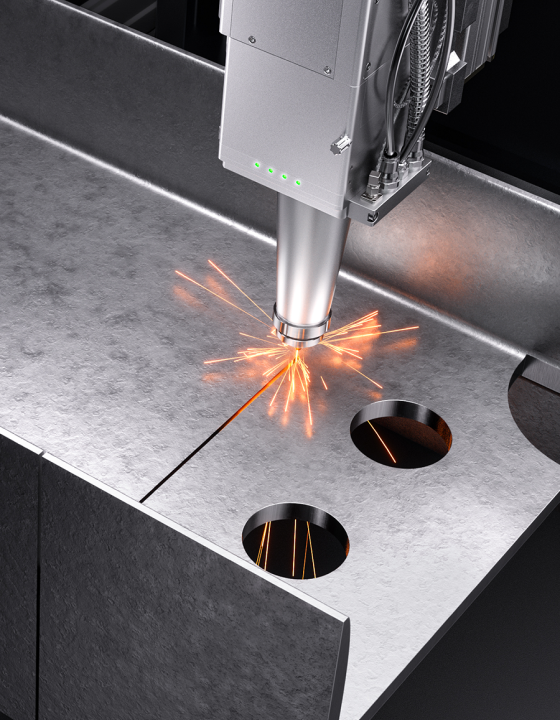

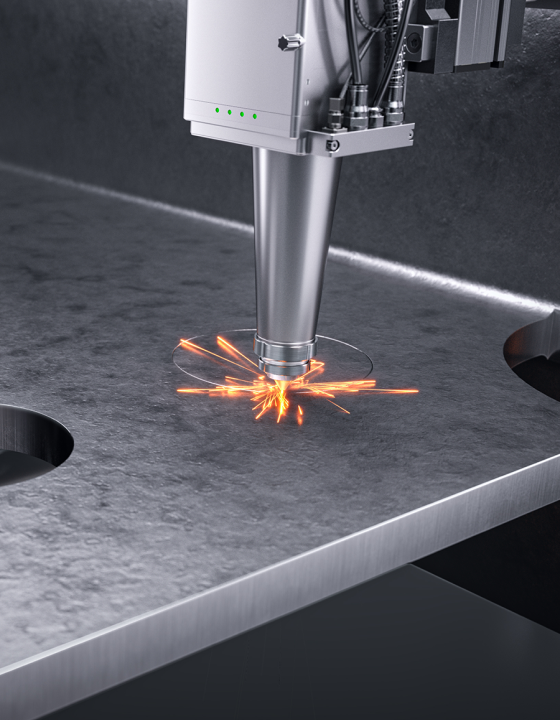

  • Drilling

  • Locking notch

    Beveled

    Court



Fully automatic operation – Truly intelligent and labor-free

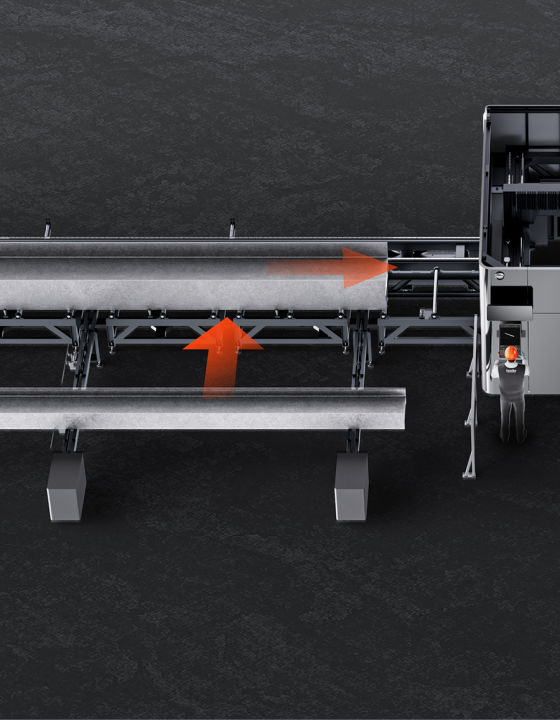

  • Automatic Loading: The steel profile loading process is completed in less than 20 seconds without manual intervention.

  • Automatic Processing: The entire steel profile manufacturing process requires no manual intervention from the transition zone to the processing zone.

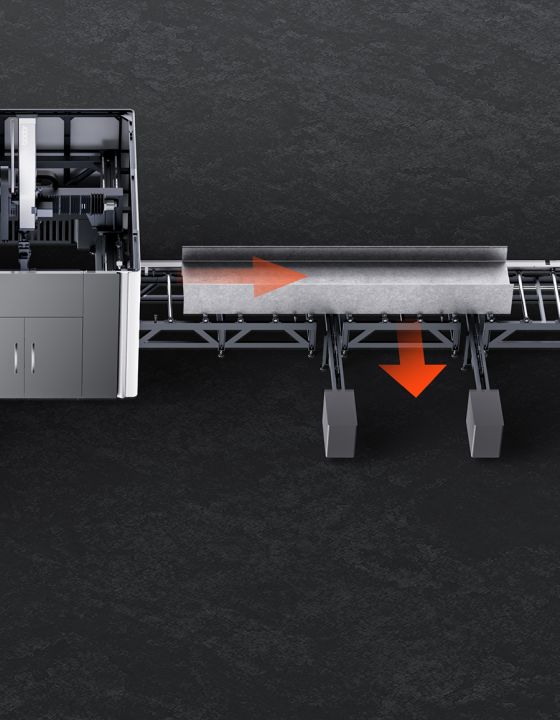

  • Automatic Unloading: Bodor HCut sorts workpieces according to various lengths, thus eliminating secondary material distribution.

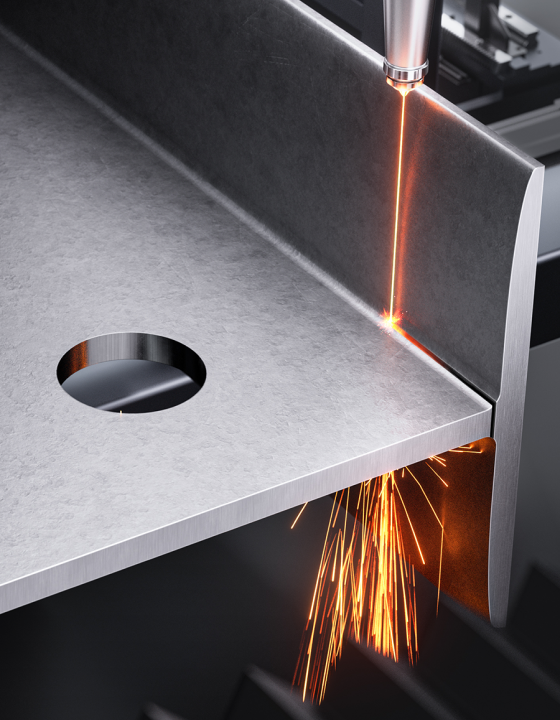

Locking notch forming efficiency doubled in one step

To enable single-pass locking notch cutting, the laser head maintains a specific distance above the workpiece when cutting steel, thereby eliminating manual secondary grinding and increasing processing efficiency by 100%.

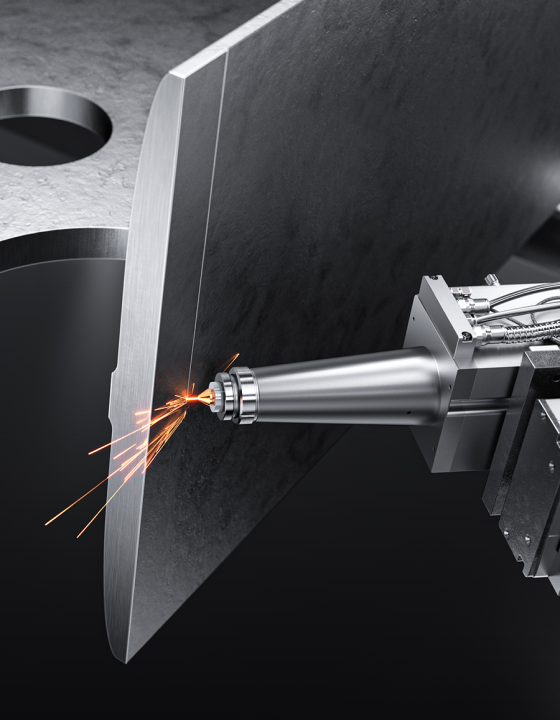

The 5-axis cutting linkage provides excellent cutting surfaces

The 180° reciprocating motion and 5-axis linkage (via linear axes A, C, X, Y and Z) ensure the optimal cutting effect of the H-beam workpiece. Bevel cutting is also available.

Adapts to Tekla drawings for stress-free ungrouping

After quick unbundling, you can automatically generate processing codes for subsequent operations, further improving work efficiency compared to manual unbundling.

Functional parameters



  • Processing Range (Profile): 600mm × 300mm - 1000mm × 600mm

  • Processing Range (Metal Sheet - Straight Cutting): -

  • Processing Range (Metal Sheet - Bevel Cutting): -

  • Processing Range (Square + Round Tube): -

  • Processing Range (Round Tube Only): -

  • Processing Length: 6200mm - 13500mm

  • Power: 12kW, 24kW

  • Dimensions: 36660mm × 6260mm × 4240mm

  • Bevel Cutting: ●

  • Notch Cutting: ●

  • Intelligent Deviation Correction: ×





Garantía de 5 años
