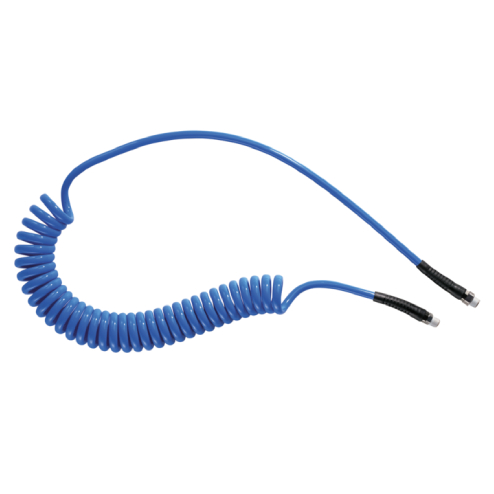

REF: 806PUS610

Maximum Ergonomics and Flexibility without Twisting at the Workstation

The high-quality polyurethane used by Prevost ensures that the hose immediately returns to its original compact shape after being stretched, keeping aisles free of tripping hazards in workshops. Its major competitive advantage lies in the configuration of its threaded ends.

Equipped with fixed and rotating male plugs.

Product Technical Specifications

• Manufacturer / Brand: Prevost.

• Model / Factory Reference: PUS 610.

• Tube Material: High quality polyurethane (PU) flexibility.

• Tube Measurements: Inner diameter of 6.5 mm | External diameter of 10 mm.

• Useful Extension Length: 10 meters.

• Outer Diameter of the Spiral: 52 mm.

• Thread Type Connection:Male G1/4” BSPT (Standard tapered thread for compressed air).

• Characteristics of the Fittings: 1 Fixed Plug + 1 360° Rotating Plug.

• Maximum Operating Pressure: 8 bar.

• Working Temperature Range: -15°C to 70°C.
