REF: 806ISI061808CP

Product Description: Safety and Robustness for Flexible Lines

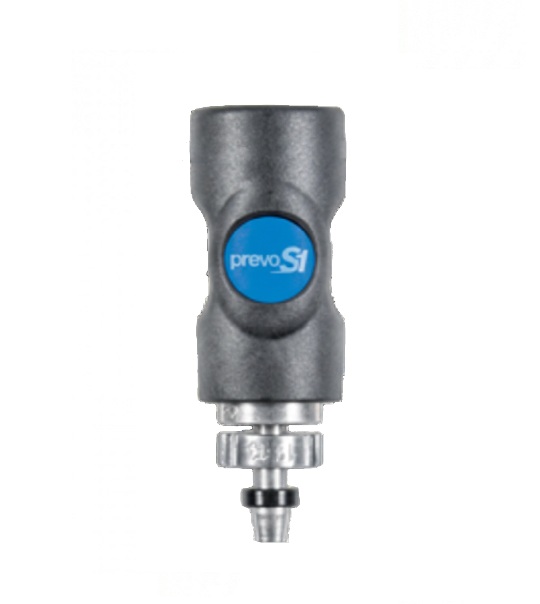

The Prevost ISI 0611808CP safety quick-connect fitting is an essential component for assembling custom compressed air hoses. Its design, with an 8 mm (inner diameter) hose barb, offers an extremely reliable and tensile-resistant connection, ideal for dynamic work environments such as machine shops and assembly lines.

Technical Specifications

• Reference: ISI 061808CP
• Connection: Hose barb with an 8 mm inner diameter.
• Profile: ISO 6150 B (6 mm passage diameter).
• Safety Technology: Two-stage push-button disconnect (ISO 4414 standard).
• Operating Pressure: 12 bar.
• Material: Technical composite body (scratch-resistant and high impact-resistant).
• Operating Temperature: -15°C to 70°C.

Advantages of the ISI 061808CP Model

1. Total Passive Safety: When the button is pressed, the system automatically purges the air from the hose before releasing the connector. This eliminates the risk of the hose whipping the operator.
2. Superior Mechanical Fixing: The knurled spigot ensures that, once the ear clamp is in place, the hose will not come loose, even under pressure spikes.
3. Protection of Delicate Parts: The technical polymer body prevents accidental damage from contact with finished surfaces, which is vital in the automotive sector.
4. Lightweight and Ergonomic: Facilitates the extended use of handheld pneumatic tools without adding unnecessary weight to the line.
