REF: 0771070721

Maximum German Precision for Small Stems

High-precision intermediate reduction sleeve from Morse Taper 2 to Morse Taper 1 (Reference: 107.07.21). Manufactured by Kemmler under standard DIN 228-B / DIN 2185, it features a fully hardened body and internally and externally ground surfaces with a concentricity of 10 µm and cone quality AT5 for machine shops.

Product Technical Specifications

• Model / Manufacturer Reference: 107.07.21.

• Product Type: Intermediate sleeve Morse Taper Reducing Bushing.

• Main Use: Clamping and adapting tools with Morse Taper 1 shank.

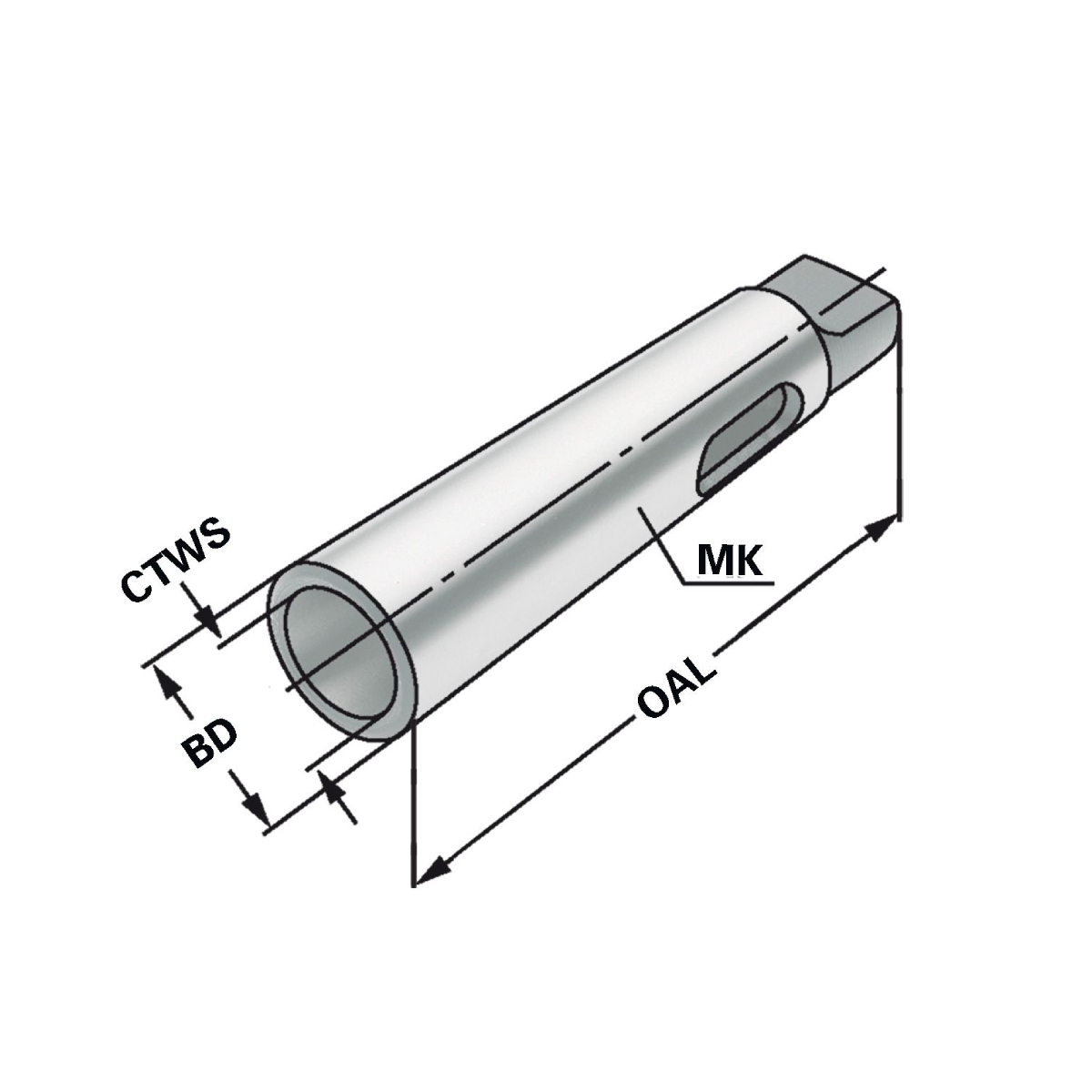

• Outer Taper (Machine / Spindle - MK): Morse Taper 2 (MK 2 / CM 2).

• Inner Cone (Tool - CTWS): Morse Cone 1 (MK 1 / CM 1).

• Reference Outside Diameter (BD): 18.6 mm.

• Overall Length (OAL): 92 mm.

• Manufacturing Standards: DIN 228-1B (ADINTMS: DIN 228-B) and DIN 2185 (ADINTWS).

• Concentricity Accuracy (Round Trip): < 10 µm

• Taper Tolerance (TDCON): AT5.

• Authorized Local Distributor: Pilses S.L.
