REF: 105P0478

Product Description: Versatility in Metal Assembly

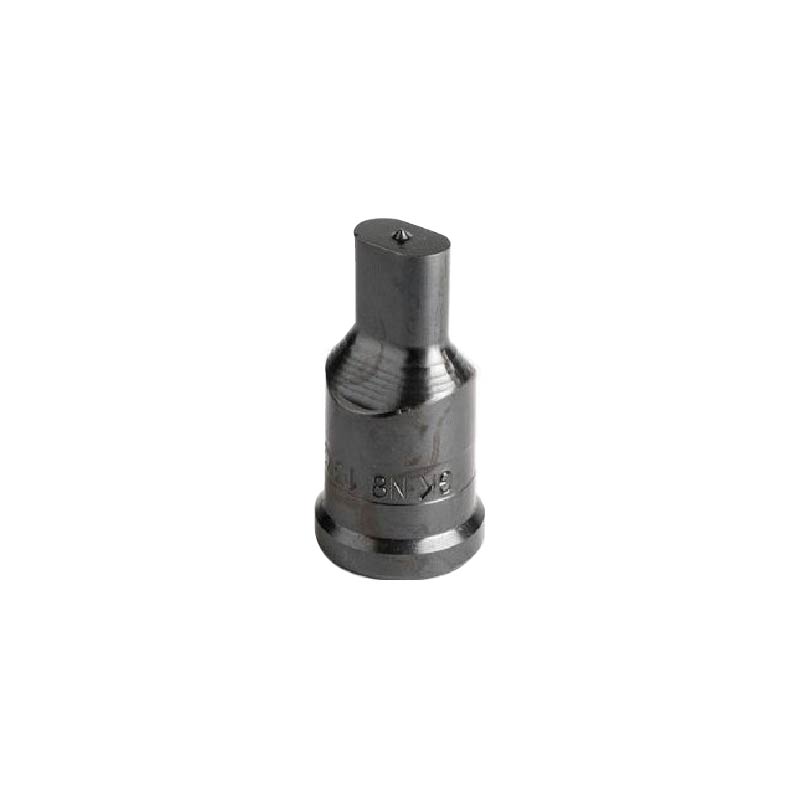

The oblong punch No. 6 (Ref: P6O1200x250) is a specialized cutting tool for creating slotted holes of 12 x 25 mm. This type of drilling is fundamental in the metal industry to allow the necessary mechanical clearance in bolted joints, absorbing the manufacturing tolerances of the structures.

Technical Specifications

• Reference: P6O1200x250

• Model:No. 6 (Compatible with GEKA type punching systems)

• Shape: Oblong / Colisa (rounded ends)

• Dimensions: 12 mm (Width) x 25 mm (Length)

• Material: Tool steel High alloy, tempered to resist severe impacts and lateral wear.

Advantages of the Pilses Oblong Punch

1. Structural Fitting: Ideal for drilling plates where a margin of maneuverability for bolts up to M10 or M11 is required, ensuring that the final assembly is quick and accurate.

2. Clean Cut: The ground geometry of its edges guarantees tear-free punching, even in considerable thicknesses.

3. Shear Strength: Manufactured to withstand the asymmetrical forces inherent in oblong cutting, preventing premature breakage of the punch neck.

Recommended Applications

As distributors with more than 50 years in O Porriño, we recommend this punch for:

• Manufacturing of industrial warehouses: Holes of belts and plates Anchorage.

• Naval and Auxiliary Industry: Assemblies requiring compensation for expansion or vibration.

• Railway and Automotive Maintenance: Adjustable fastening components.
