REF: 806RPYET1212

Product Description: Compact Distribution and Instant Assembly

The RPY ET1212 is a Y-shaped connector designed for 12 mm polyamide or polyurethane tubing. Its instant connection technology allows for immediate tube insertion and a watertight seal, greatly simplifying modifications to machinery or light pneumatic systems. Its body, made of technical polymer, guarantees lightness and excellent mechanical resistance.

Technical Specifications

• Connection Type: Instant (Push-in) for Ø 12 mm external diameter.

• Configuration: Equal Y-junction (1 inlet and 2 outlets of 12 mm).

• Material: High-quality polymer body and stainless steel clamping claws.

• Working Pressure: Up to 10 bar.

• Maximum Temperature: 60 °C.

• Fluid: Compressed air and empty.

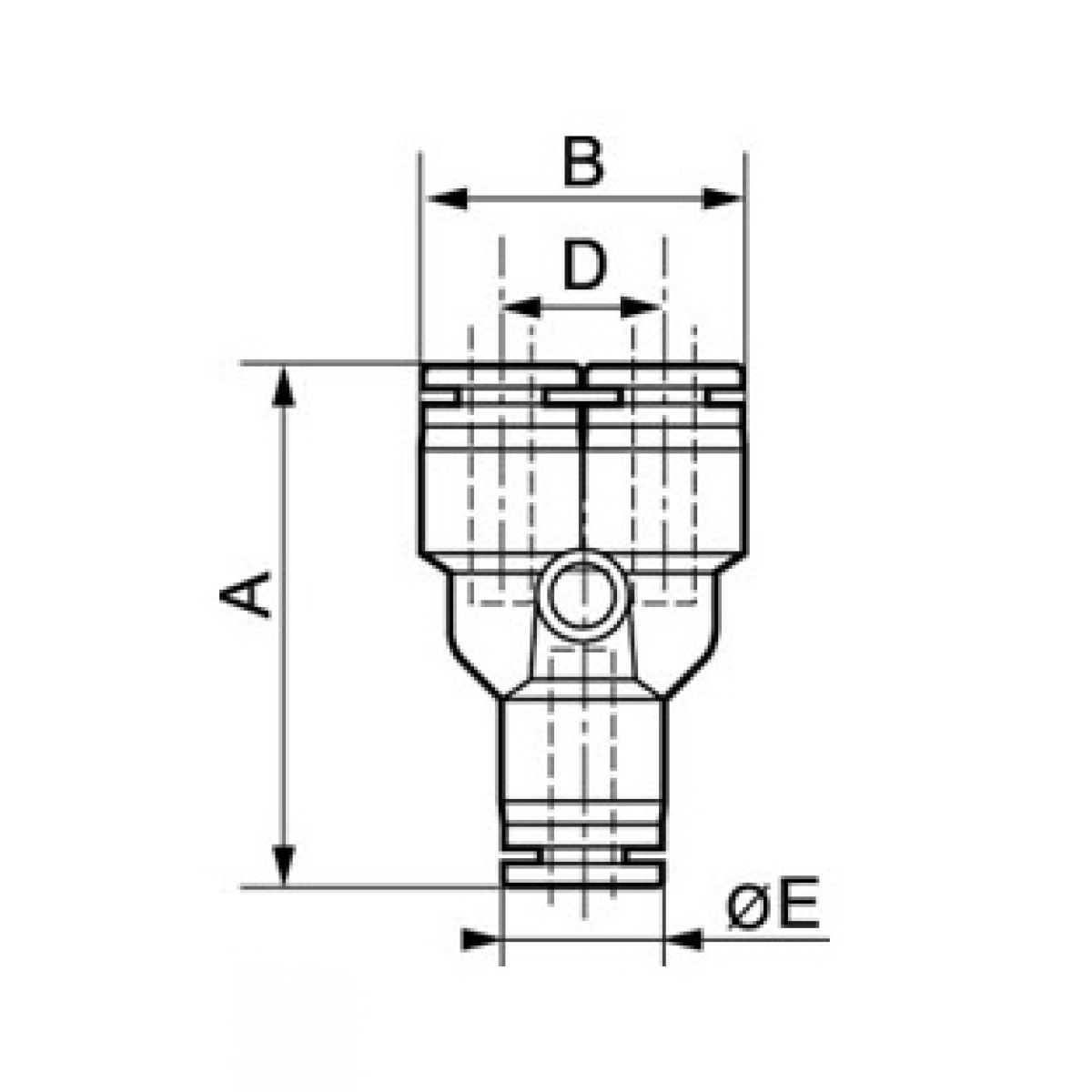

Compact Dimensions

• Ø Exterior:12 mm.

• A (Total length): 53.1 mm.

• B (Total width): 39.6 mm.

• D (Distance between exit centers): 20 mm.
