REF: 682R115041010

Precision Oval Geometry and Patented BLUE-TEC Coating

The BLUE-TEC coating acts as a protective, anti-friction layer that shields the micro-cutting edges against premature wear and the high temperatures generated in small-diameter tools rotating at high speeds.

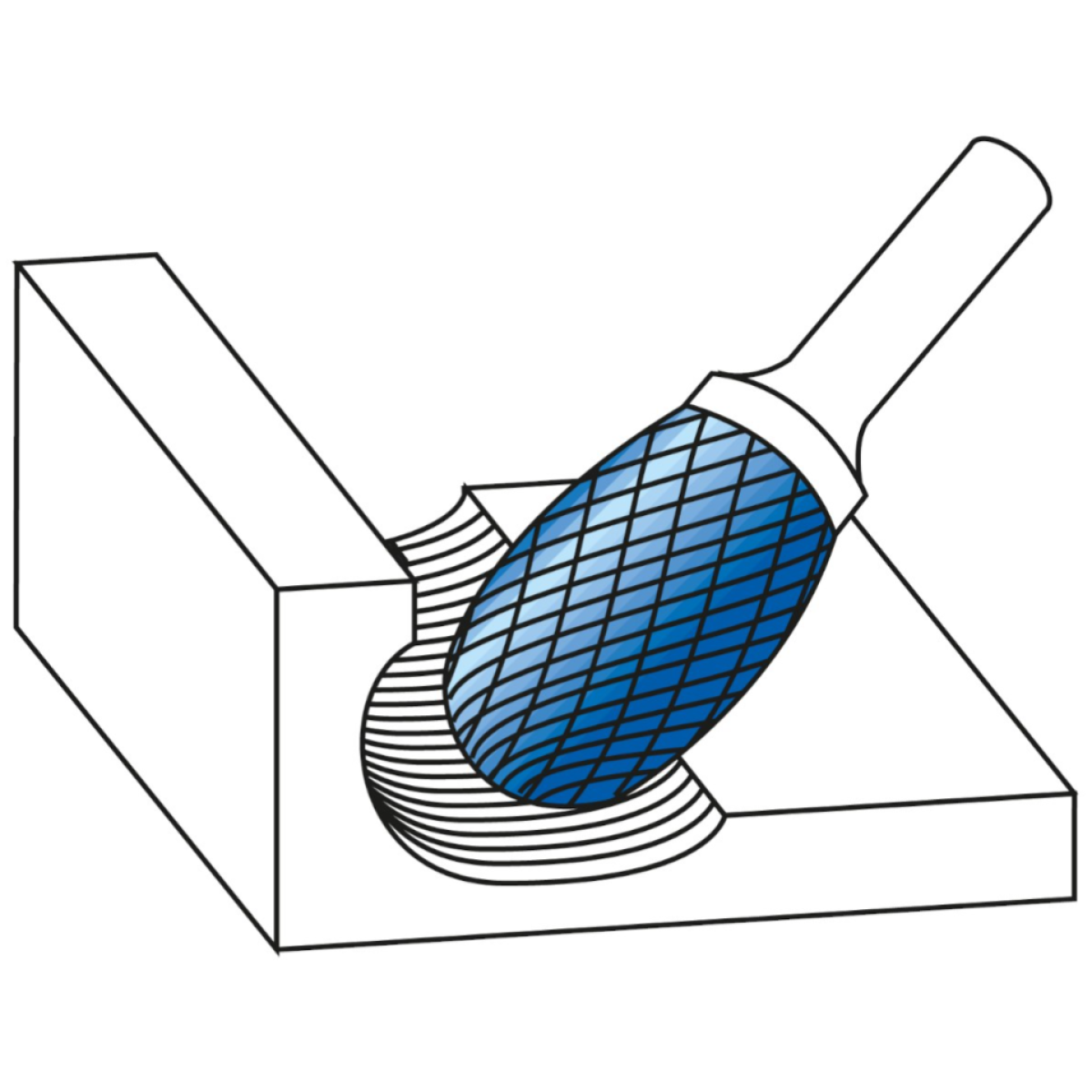

Shape E (TRE / oval) offers a rounded contour without sharp edges, allowing for smooth radius transitions, the finishing of small curved cavities, and the blending of contours—all without leaving step marks on demanding materials such as stainless steel, titanium alloys, or die steels.

PRODUCT DETAILS:

HP-3-CUT

BLUE-TEC Coating:

The patented BLUE-TEC coating, designed specifically for rotary burrs, provides exceptional service life and excellent performance across all metals.

Technical Specifications:

• Features the most widely used universal cut style:
• High cutting action due to the cross-cut design
• Smooth operation
• Produces short chips
• For use on all ferrous materials, including:
  • Cast iron – steel (up to 60 HRC)
  • Stainless steel (INOX)
  • Nickel-based and titanium alloys
  • Copper
  • Brass
  • Bronze

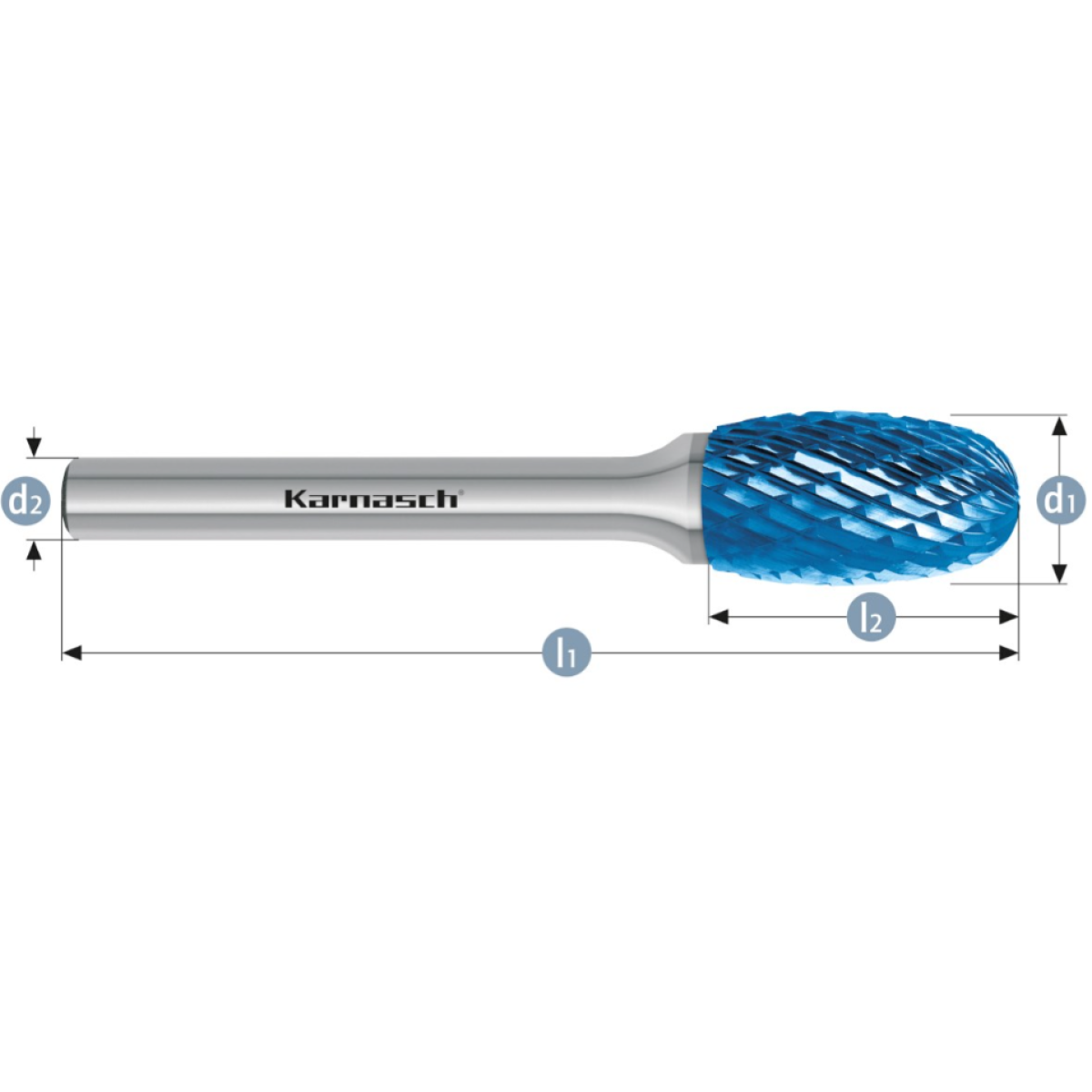

D1 = 3 mm

D2 = 3 mm

L1 = 38 mm

L2 = 6 mm

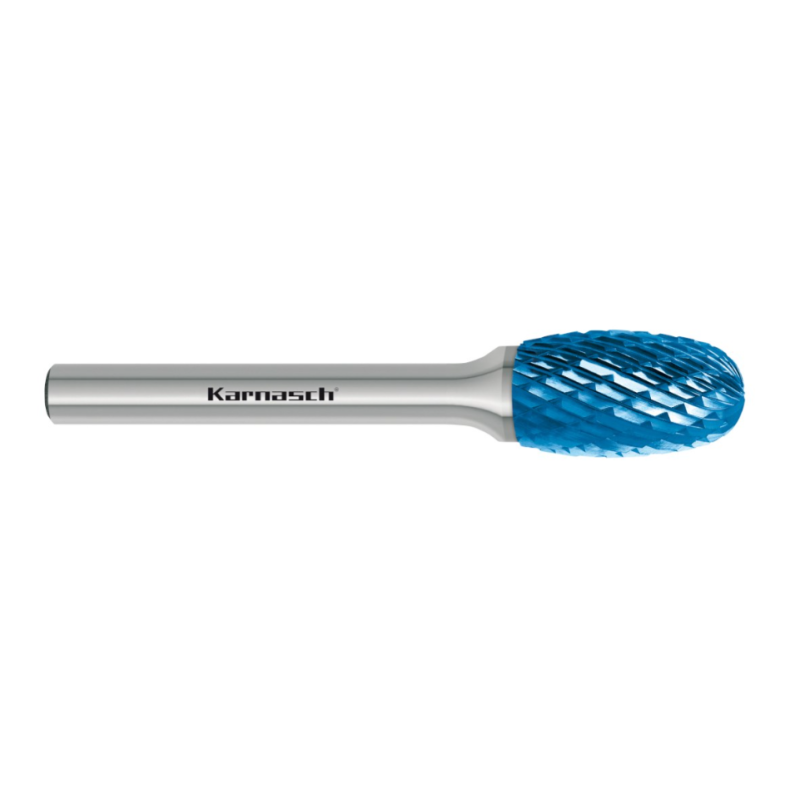

Rotary burr, oval shape (TRE), HP3 cut, coated

Blue-Tec
