REF: 0381LOGU1212

Efficient Milling, Rigid Vertical Geometry, and State-of-the-Art Al-Ti-N Grade

The vertical insert concept of Mitsubishi Materials' LOGU series maximizes tool body rigidity and provides multiple, highly stable cutting edges. Combined with the MV1020 grade PVD/CVD coating, this insert reduces friction, withstands high temperatures at the cutting edge, and significantly extends tool life during roughing and semi-finishing passes.

Technical Advantages

• MV1020 Carbide Grade: State-of-the-art coating that combats abrasive wear and plastic deformation at high speeds.

• M (Medium) Chipbreaker: Excellent chip control and fragmentation across a wide range of materials, reducing cutting forces.

• Corner Radius RE=1.6 mm: Provides high toughness at the cutting tip, ideal for absorbing impacts during interrupted cuts or corner machining.

• Failure and Vertical Stability: Seating design that supports high axial and radial cutting forces without moving the insert.

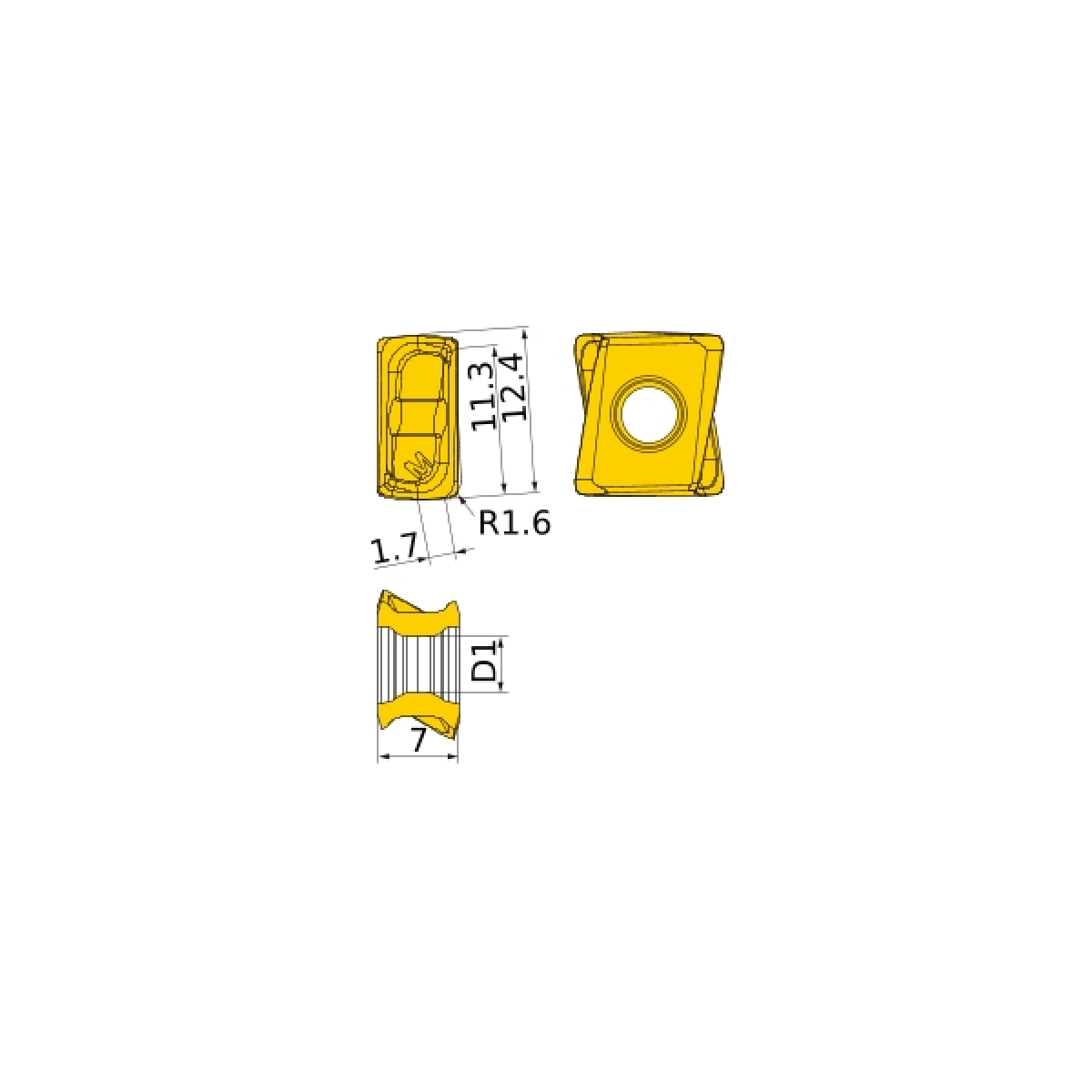

Diameter (Unit)
Quality name	Hard Metal
Quality	MV1020
ANSI	LOGU1207160PNER-M
existence
Unit of length	M
LE	11.3
L	12.4
BS	1.7
S	7
RE	1.6
Chipbreaker	M
