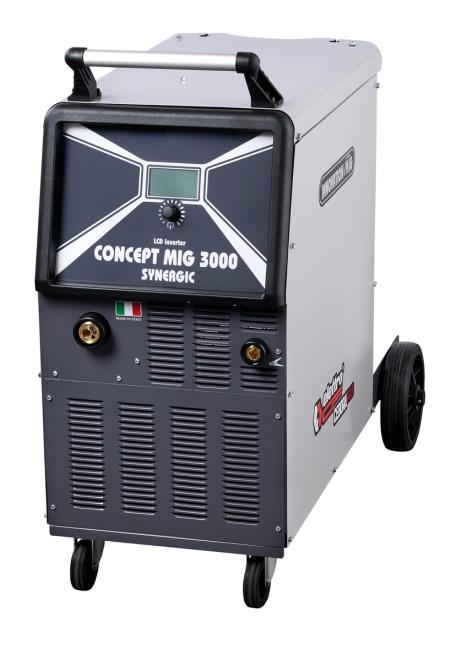

Elettro Concept MIG 3000 Three-Phase Inverter 300A | Ref. S00374

REF: 195S00374

Description:

Three-phase generator from the CONCEPT MIG line, with inverter, synergistic operation, for MIG-MAG continuous wire welding, particularly versatile and suitable for different applications, in particular for metal carpentry. ;lica intermedia.

Main features:

• Synergistic operation that enables control of welding conditions through a single variable and allows these generators to be easy to use even by less experienced welders.

• Equipped with a solid and reliable 4-roller wire feeder that allows correct wire feed. Replacing the rollers without tools.

• Equipped with more than 40 synergistic programs for solid wire: Fe - Al - Inox - CuSi, optimized to achieve exceptional arc stability and reduce the processing required after welding.< /div>

• Equipped with a large LCD screen that allows the operator to easily select and program the different welding modalities and options. In addition, it allows you to always have a clear indication of the current welding parameters.

• Possibility of mounting coils up to D. 300 mm, 15 kg.

• All In One control: from the front panel you can regulate the different welding options using a single selector.

• The adjustable welding options are: arc length, 2-stroke or 4-stroke welding mode, spot time, pause time, impedance, burn-back, soft start, pre-gas, post-gas, automatic hot-start. attic, automatic crater-filler and 3 levels.

• Low energy consumption.

• Solid metal structure with cylinder holder.

• High stability thanks to the large diameter rear wheels.

• It can be powered by a motor-generator of adequate power.

• EURO connection for MIG torch.

Technical specifications:

Code	S00374	S00374.A85
Item	CONCEPT MIG 3000
Input Voltage	3x400V 50-60Hz	3x230V 50-60Hz
Absorbed power	40% 9,0 kVA - 60% 8,3 kVA - 100% 6,6 kVA	30% 9,0 kVA - 60% 8,3 kVA - 100% 6,6 kVA
MIN-MAX Welding current	20 ÷ 300 A
Duty cycle – 10 MIN CYCLE ACCORDING TO EN 60974-1	40% 270A - 60% 240A - 100% 190A	30% 270A - 60% 240A - 100% 190A
Regulation steps	ELECTRONIC
Wire size (solid)	Ø 0,6/0,8/0,9/1,0/1,2 Fe 0,6/0,8/0,9/1,0/1,2 Al 0,8/0,9/1,0/1,2 Inox 0,8/0,9/1,0 CuSi 3% mm
Max. wire spool size	Ø 300 mm / 15 kg.
Protection class	IP21
Construction standards	EN 60974 – 1 / EN 60974 - 10
Dimensions	500x890x870h mm
Weight	40 kg
