REF: 105M0043

Precision Cutting, Calculated Technical Clearance, and Long Service Life

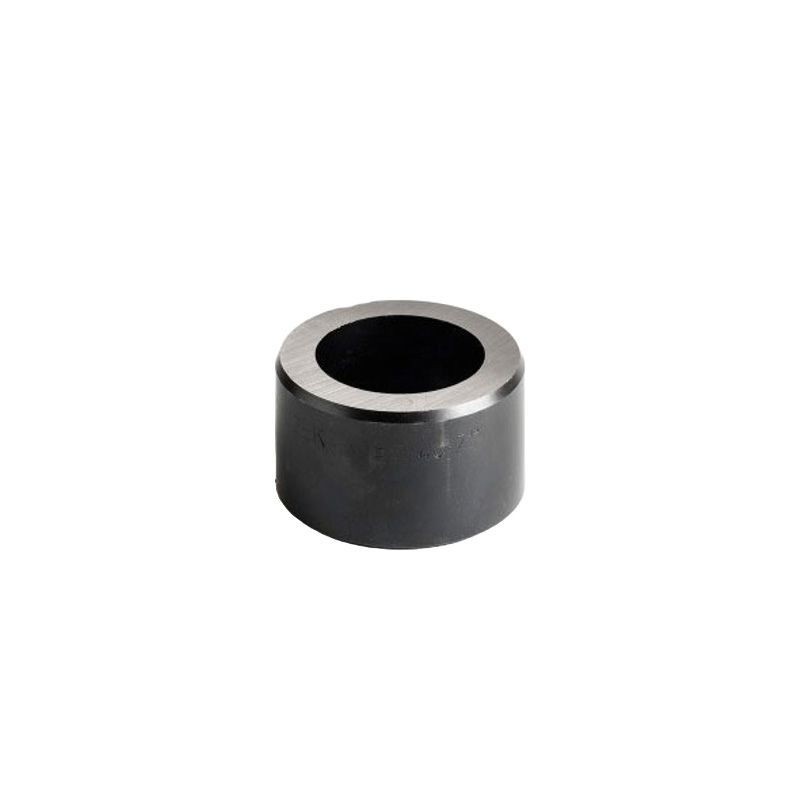

The M6R2470 No. 6 round die is designed to withstand intensive machine-side operation. Its 0.7 mm clearance allows for optimal material deformation flow as the punch penetrates, reducing wear on the cutting edges of both the punch and the die, and preventing the slug from becoming jammed in the lower opening.

Technical Advantages

• Treated Tool Steel: High resistance to compression, frictional wear, and repetitive impact.

• 0.7 mm Clearance (Ø24.7 mm): Calculated for a clean, burr-free cut; ideal for optimizing punching operations on sheet metal of proportional thickness.

• Precision-Ground Entry Geometry: Ensures a precise fit and perfect alignment with the punch within the punching machine.

• Standard No. 6 Compatibility: Compatible with standard No. 6 die holders used in most hydraulic punching and shearing machines.

universal.

Technical Specifications

• Product reference: M6R2470.

• Geometry: Round.

• Nominal Punch Diameter: 24.0 mm.

• Clearance: 0.7 mm.

• Actual Mouth Diameter: 24.7 mm.

• Norm / Standard: No. 6.

• Material: Special cold-work alloy steel.

• Heat Treatment: High-toughness hardening and tempering.

• Machine Compatibility: Hydraulic punching machines, universal punching shears, and mechanical presses.
