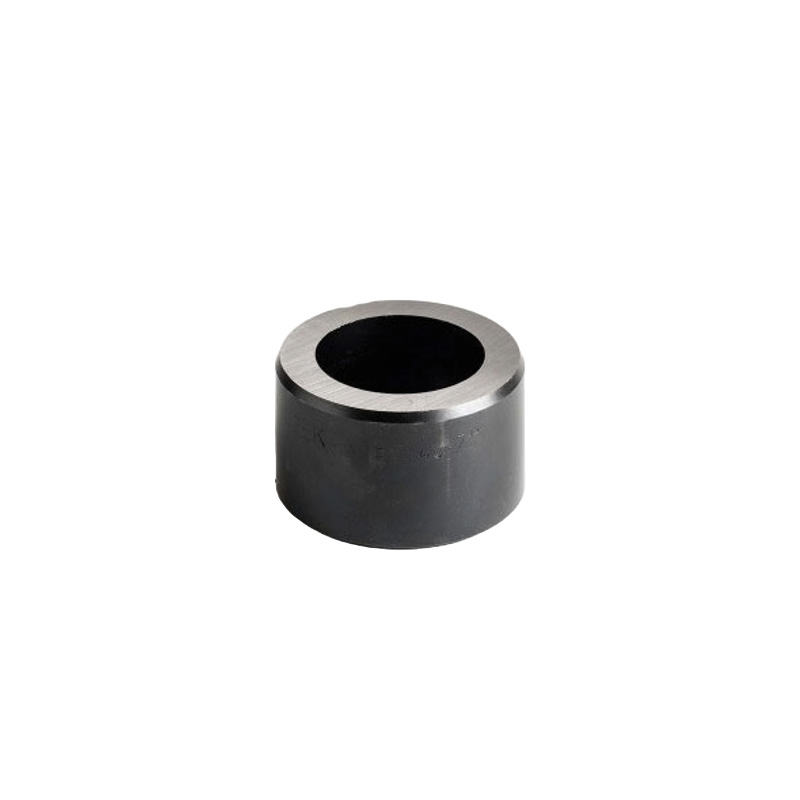

Matrix Nº6 Round Ø20.5 H.0.7mm | Ref. M6R2120

REF: 105M0036

Precision Cutting, Calculated Technical Clearance, and Long Service Life

The No. 6 M6R2120 round die is designed to withstand intensive machine-side operation. Its 0.7 mm clearance allows for optimal material deformation flow as the punch penetrates, reducing wear on the cutting edges of both the punch and the die, and preventing the slug from becoming jammed in the lower opening.

Technical Advantages

Treated Tool Steel: High resistance to compression, frictional wear, and repetitive impact.
0.7 mm Clearance (Ø21.2 mm): Calculated for a clean, burr-free cut; ideal for optimizing the punching process on sheets of proportional thickness.
Precision-Ground Entry Geometry: Ensures a precise fit and perfect alignment with the punch within the punching machine.
Standard No. 6 Compatibility: Compatible with standardized die holders of the number 6 on most punch presses and universal hydraulic shears.

Technical Specifications

Product Reference: M6R2120.
Geometry: Round.
Nominal Punch Diameter: 20.5 mm.
Clearance: 0.7 mm.
Actual Mouth Diameter: 21.2 mm.
Norm / Standard: No. 6.
Material: Special cold-work alloy steel.
Heat Treatment: High-toughness hardening and tempering.
Machine Compatibility: Hydraulic punching machines, universal punching shears, and mechanical presses.
