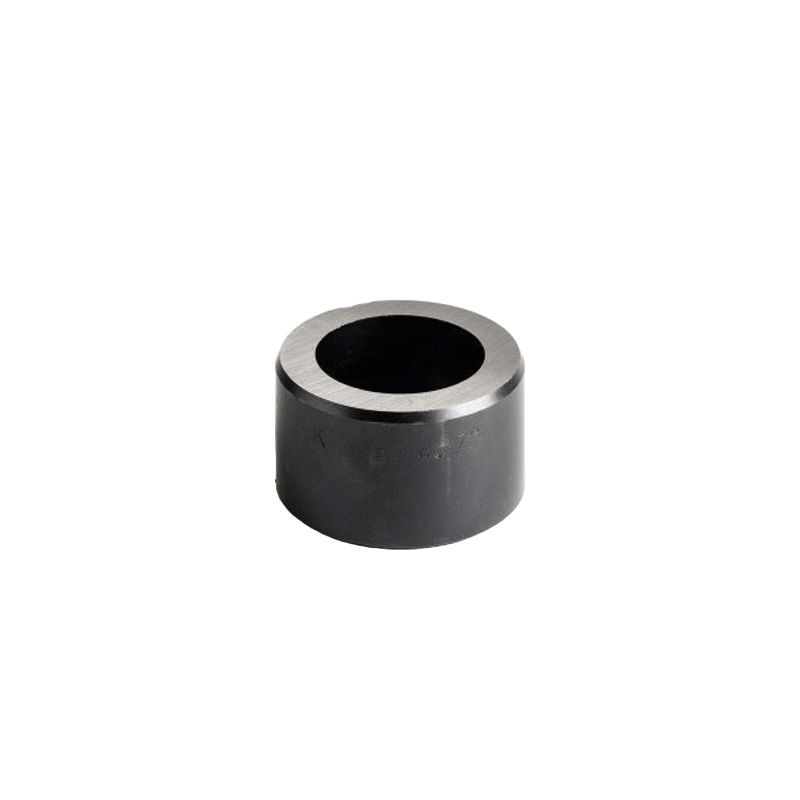

Matrix Nº6 Round Ø17.5 H.0.7mm | Ref. M6R1820

REF: 105M0030

Precision Cutting, Calculated Technical Clearance, and Long Service Life

The No. 6 M6R1820 round die is designed to withstand intensive machine-side operation. Its 0.7 mm clearance allows for optimal material deformation flow as the punch penetrates, reducing wear on the cutting edges of both the punch and the die, and preventing the slug from jamming in the lower opening.

Advantages

Treated Tool Steel: High resistance to compression, frictional wear, and repetitive impact.
0.7 mm Clearance (Ø18.2 mm): Calculated for a clean, burr-free cut; ideal for optimizing punching operations on sheet metal of proportional thickness.
Precision-Ground Entry Geometry: Precise seating ensures perfect alignment with the punch within the punching machine.
Standard No. 6 Compatibility: Compatible with standardized die holders of size... 6 on most punching machines and universal hydraulic shears.

Technical Specifications

Product Reference: M6R1820.
Geometry: Round.
Nominal Punch Diameter: 17.5 mm.
Clearance: 0.7 mm.
Actual Mouth Diameter: 18.2 mm.
Norm / Standard: No. 6.
Material: Special cold-work alloy steel.
Heat Treatment: Hardened and tempered for high toughness.
Machine Compatibility: Hydraulic punching machines, universal punching shears, and mechanical presses.
