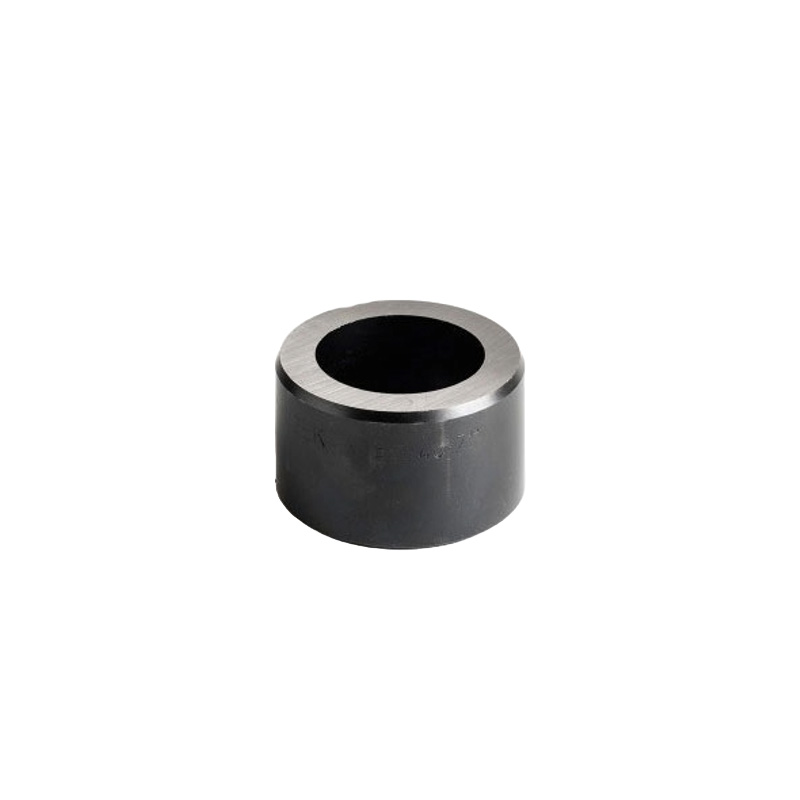

REF: 105M0028

Precision Cutting, Calculated Technical Clearance, and Long Service Life

The No. 6 M6R1720 round die is designed to withstand intensive machine-side operation. Its 0.7 mm clearance allows for optimal material deformation flow as the punch penetrates, reducing wear on the cutting edges of both the punch and the die, and preventing the slug from becoming jammed in the lower opening.

Product Technical Specifications

• Product Reference: M6R1720.

• Geometry: Round.

• Nominal Punch Diameter: 16.5 mm.

• Clearance: 0.7 mm.

• Actual Opening Diameter: 17.2 mm.

• Norm / Standard: No. 6.

• Material: Special cold-work alloy steel.

• Heat Treatment: High-toughness hardening and tempering.

• Machine Compatibility: Hydraulic punching machines, universal punch-shears, and mechanical presses.

Technical Advantages:

• Treated Tool Steel: High resistance to compression, frictional wear, and repetitive impact.

• 0.7 mm Clearance (Ø17.2 mm): Calculated for a clean, burr-free cut; ideal for optimizing punching operations on sheet metal of... thickness

proportional.

• Precision-Ground Entry Geometry: Precise seating that ensures perfect alignment with the punch in the punching machine.

• No. 6 Standard Compatibility: Compatible with standard No. 6 die holders on most universal hydraulic punching and shearing machines.
