Lathe Plates SPMW090308 UP20M | Mitsubishi Materials
REF: 0381SPMW0901
Maximum Stability and Versatility: UP20M Positive Insert Technology
Mitsubishi Materials carbide indexable turning inserts with positive square geometry (SPMW), model SPMW 090308 in coated UP20M grade. Designed to ANSI SPMW322 coding, they incorporate a flat top design and an 11° rake angle. (AN) that minimizes cutting forces and vibrations. Ideal for universal high-precision turning, facing, and boring applications in industrial environments.

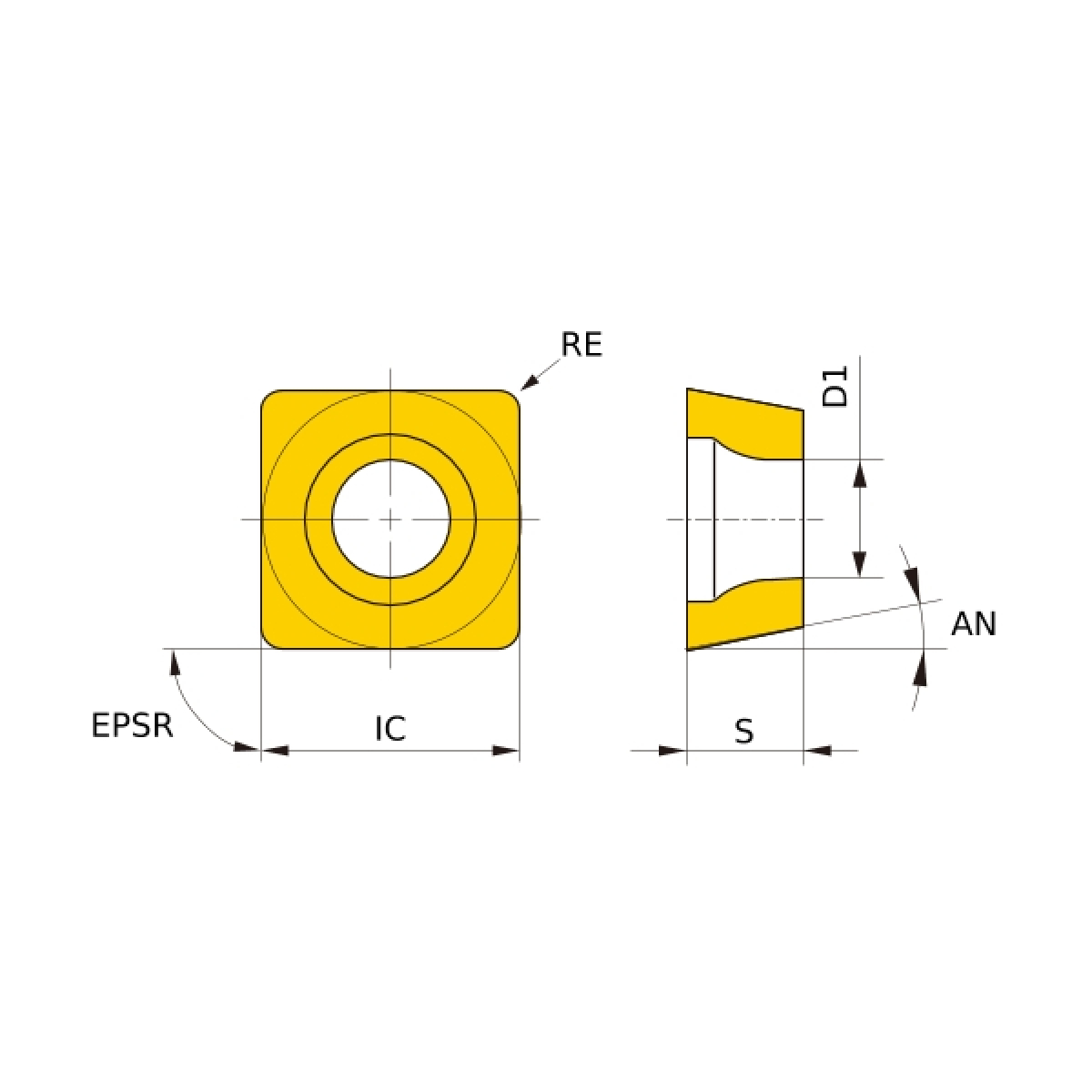

| Diameter (Unit) | |
|---|---|
| Grade Name | Carbide |
| Quality | UP20M |
| ANSI | SPMW322 |
| Hand | N |
| existence |  |
| Unit length | M |
| D1 | 4.6 |
| IC | 9,525 |
| EPSR | 90° |
| AN | 11° |
| S | 3.18 |
| RE | 0.8 |
| Chipbreaker | flat_top |
Lathe Plates SPMW090308 UP20M | Mitsubishi Materials
VAT included
10.04€
