REF: 0381TNGG2202

Product Description: Excellence in Finishing with Cermet Technology

The Mitsubishi TNGG 220404R plate in NX3035 grade represents the cutting edge in steel turning. Being a Cermet (a composite material of ceramic and metal), it offers exceptional resistance to adhesive wear and superior chemical stability compared to conventional carbide inserts. It is the ideal tool for the automotive and precision component industries in Galicia.

Technical Specifications (ISO / ANSI)

• ISO code: TNGG 220404R.

• ANSI code: TNGG431R.

• Quality (Grade): NX3035 (Cermet). Excellent for high cutting speeds in medium cutting conditions.

• Geometry: Triangular (60°) with angle of detachment (GAN) of 15°.

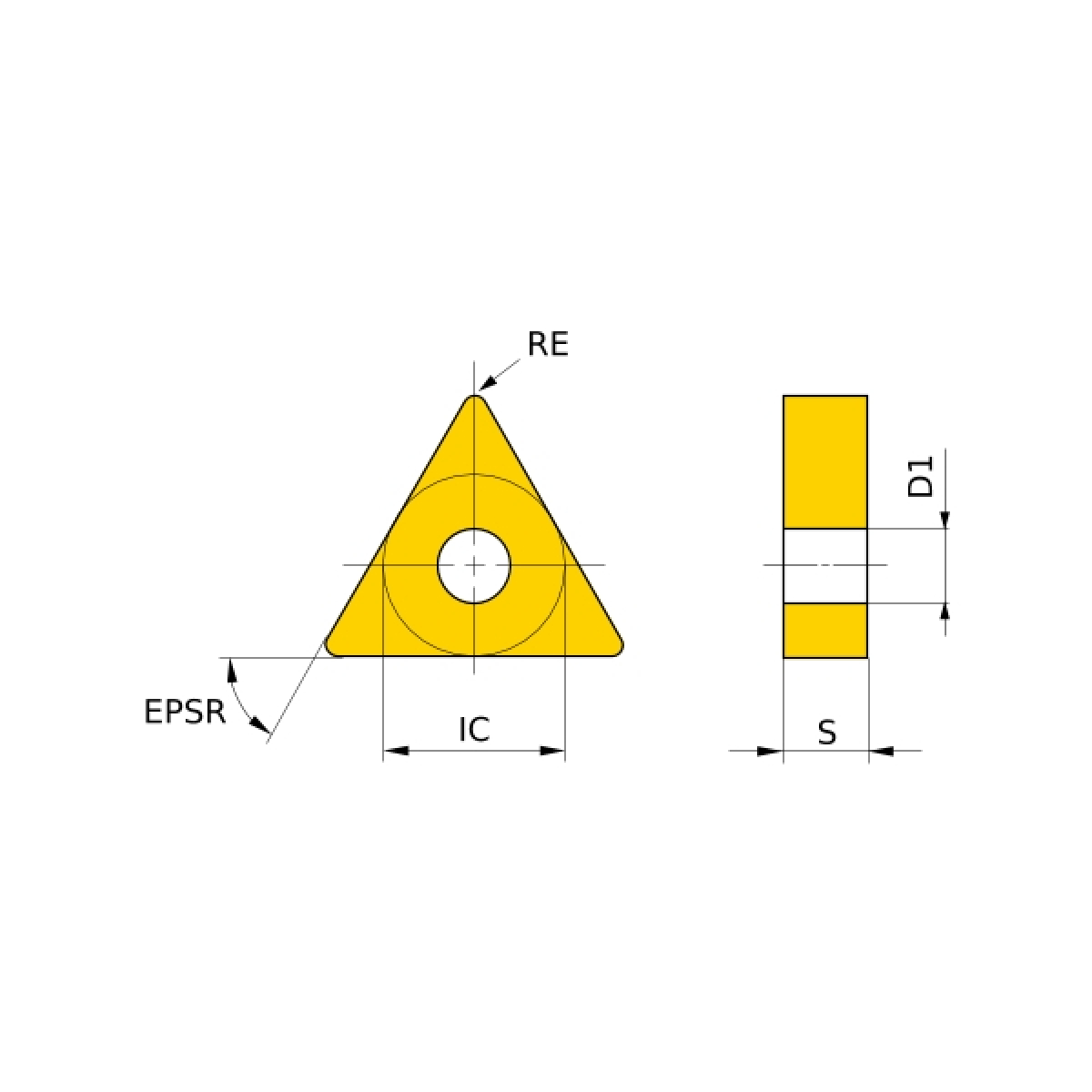

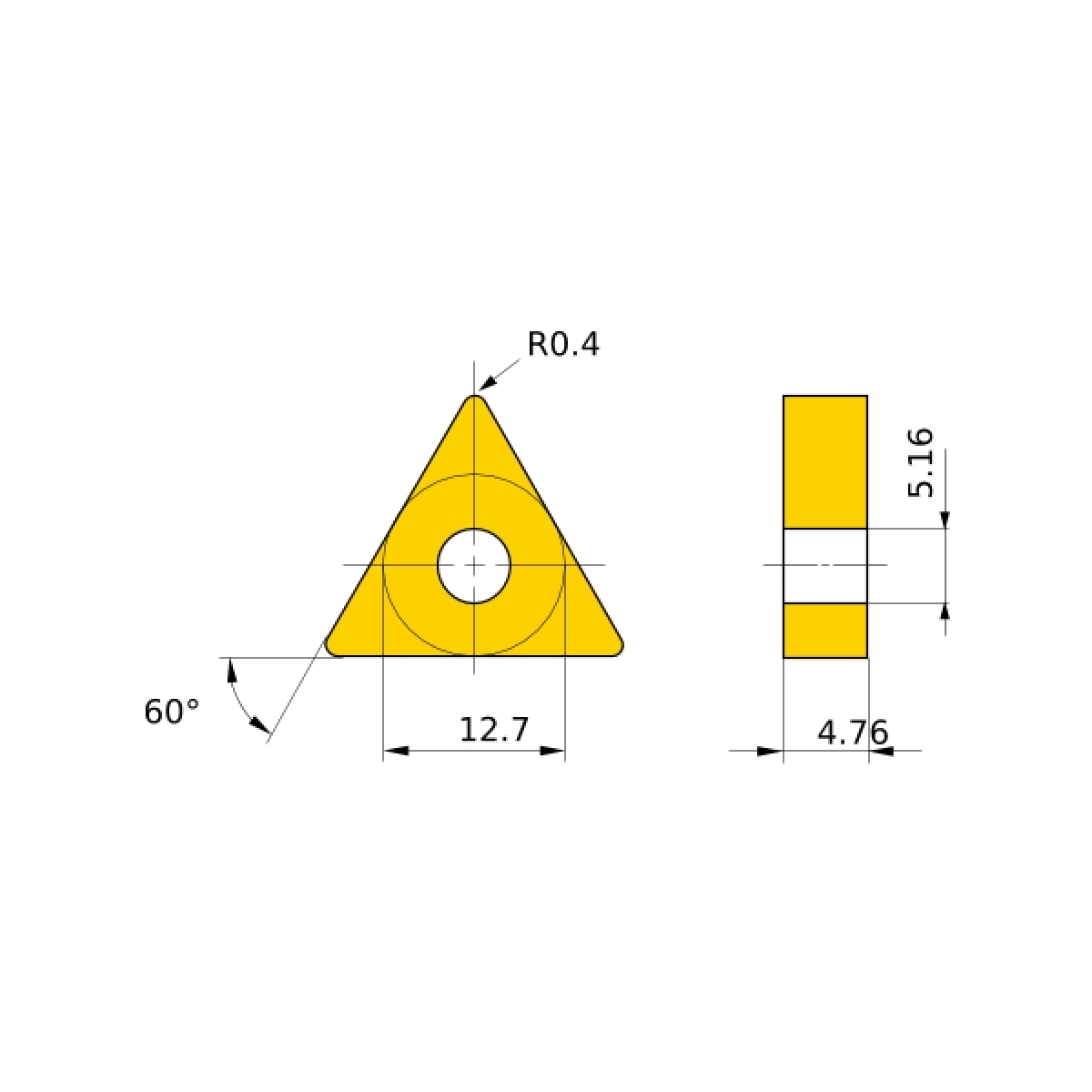

• Critical Dimensions:

  • IC (Inscribed Circle): 12.7 mm.

  • S (Thickness): 4.76 mm.

  • RE (Nose Radius): 0.4 mm (Ideal for finishing fine).

  • LE (Edge Length): 9.4 mm.

• Hand: Right (R).
