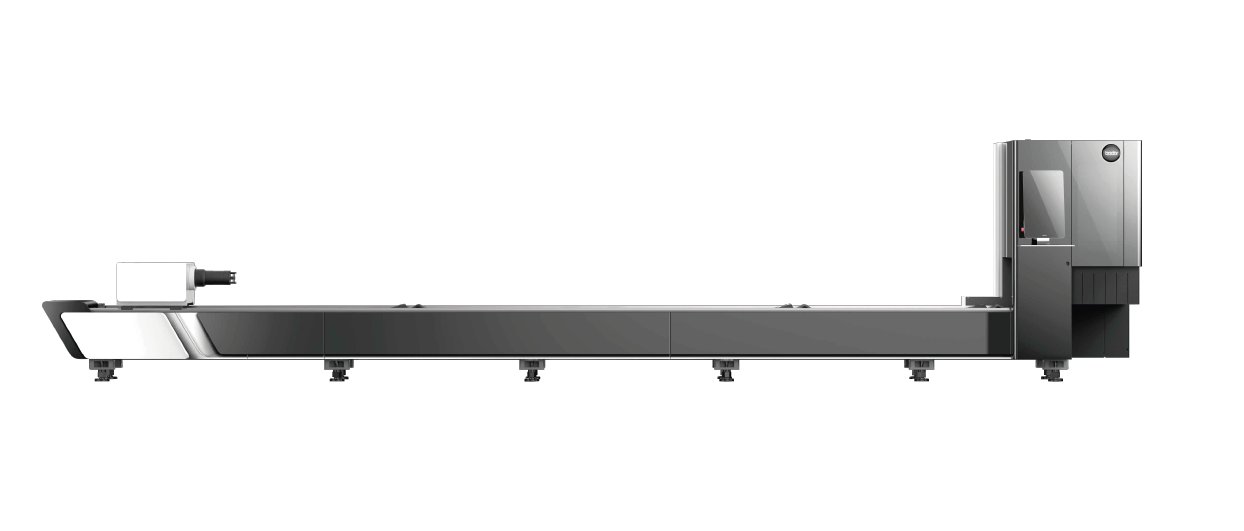

BODOR K – CLASSIC MODEL | LASER TUBE CUTTING MACHINE

Industry bestseller easy operation

Bodor Laser has launched the K Series laser tube cutting machine to address the high operational barriers in the market. This machine integrates features such as high-speed chucks, a rapid clamping response in 2 seconds, ultra-short tailstock, and one-click start. It is designed to provide a simple, safe, and environmentally friendly tube cutting solution.

________________________________________________________________________________________________________

“Reduce costs, not quality”



  • Improved Speed: The K series reaches a maximum loading speed of 100 m/min and a chuck rotation speed of 150 r/min. It achieves fast cutting without compromising cutting speed.

  • Enhanced Automation: Optional loading devices, K-Loader and K-Trans, are available to increase customers’ level of automation, accelerate loading speed, and increase processing efficiency.

  • Simplified production: Corresponding part graphics can be generated automatically by simply entering data. Centering, edge detection, cutting, and unloading can be completed in just a few clicks.

​

Ask for quotation

Any questions? Contact us

Información adicional

Best Cutting Assistant

The K Series can cut or process various types of metal pipes into complex shapes.Bodor k

Bodor k

Bodor k

Bodor k



Master of different types of tubes

Solid performance of the mandrels

With improved speed in multiple aspects, the K Series offers a new ultra-fast cutting experience.

150 r/min

Max. Rotation speed

100 m/min

Max. Loading Speed

It adopts high-performance bus servo motors, which significantly improves processing efficiency to ensure that every second you invest generates value.


Fast chucks

2s

Pneumatic chucks adopt a direct-cylinder push-pull structure. With a simple and efficient transmission, they can complete clamping in just 2 seconds. They are easy to disassemble and maintain.

45mm

Short cut tailings

Through a well-designed mandrel-avoidance structure, the shortest safety distance is achieved, maximizing material utilization and reducing material costs.

*Equipped with special jaws for specific clamping positions.

Play

Play



The third generation Mortise and Tenon Welding Bed Frame

  • Stiffness increased by 28%

  • Structural strength improved by 22%

* Data obtained from laboratory analysis.

__________________________________________________________________________________
Optional

Auxiliary loading/unloading devices

*All product information provided on this website is for reference only. Specific details are subject to the actual product.

K SeriesK-Trans Automatic Loading DevicesK-Loader Auxiliary Loading Devices





5-year warranty
