REF: 806ISI111816EB

Product Description: Massive Flow with Lightness and Protection

The ISI 111816EB Quick Plug from the Prevo S1 series is the technical solution for high-consumption applications where equipment weight is a critical factor. Its high-strength polyamide body offers a lightweight alternative to metal versions, allowing it to deliver almost 3700 liters per minute with superior maneuverability.

High Flow Technical Specifications

• Input Connection: Integrated nipple for flexible tube with Ø inner 16 mm.

• Air Passage (Ø passage): 11 mm (Ultra-high flow rate for industrial tools).

• Air Draw: 3686 l/min (at 6 bar), ensuring that the air reaches the tool.

• Body Material: Polyamide, a composite material that does not scratch surfaces, is antistatic, and extremely impact-resistant.

• Prevo S1 Safety: Push-button disconnect system that purges air before releasing the pin, ensuring safe operation without dangerous "whiplash" (ISO 4414).

• Operating Range: Up to 12 bar pressure and temperatures from -15°C to +70°C.

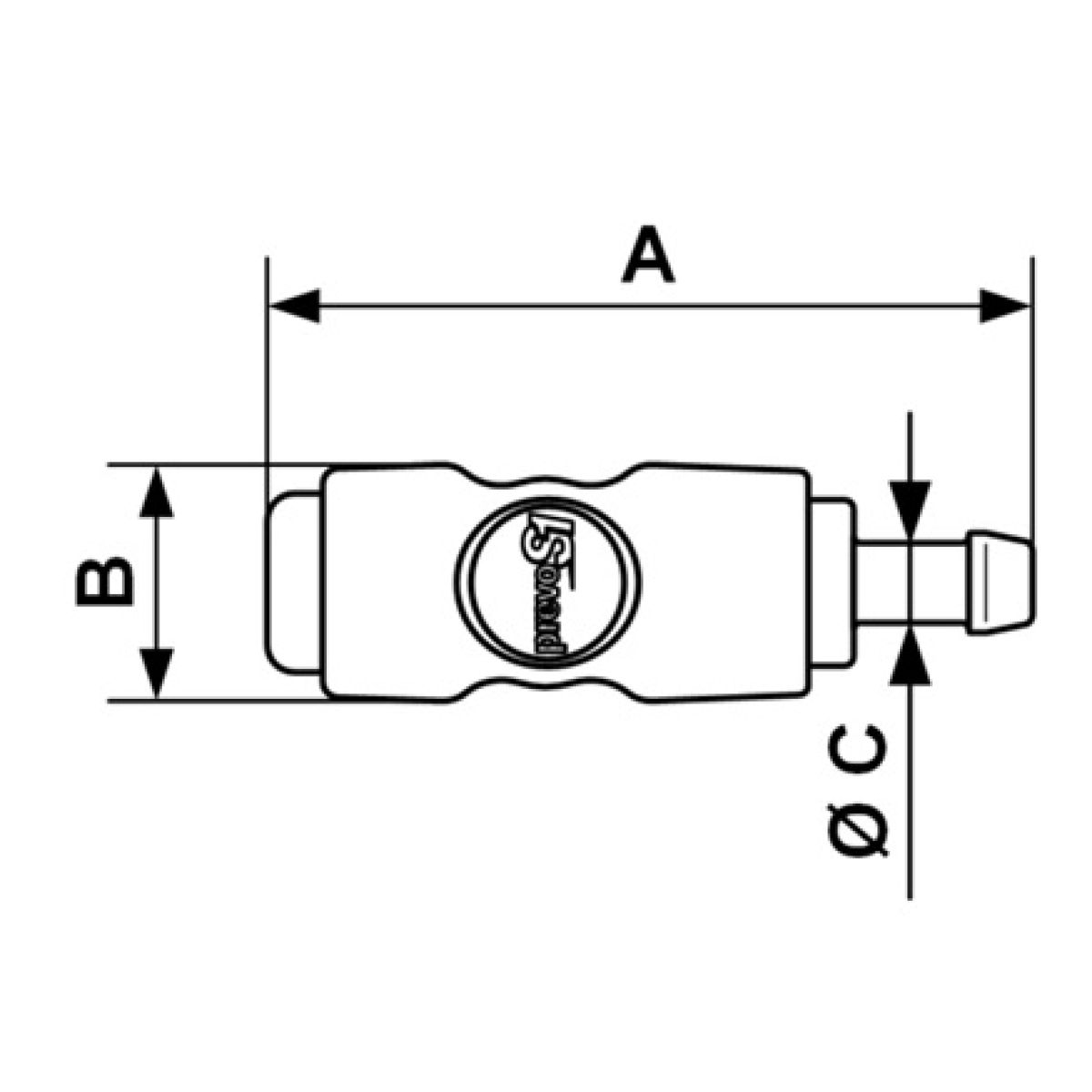

Dimensions and Profile

• A (Total length): 120 mm.

• B (Body diameter): 37 mm.

• C (Spike length): 16 mm.

• Profile: Compatible with the ISO 6150 B standard (Step 11).
