REF: 806ISI081153

Product Description: Direct Connection and Total Watertightness

The ISI 081153 Quick Plug from the Prevo S1 series stands out for its mounting versatility. By incorporating a cylindrical male thread with O-ring, it allows for quick and secure installation without the need for additional sealants (such as Teflon or hemp), ensuring a leak-free connection from the start.

High Flow Technical Specifications

• Input connection: Cylindrical male thread G 1/2".

• Sealing: Includes O-ring, ideal for sealing airtight and professional.

• Air Passage (Ø passage): 8 mm (High flow ISI 08 series).

• Extraordinary Debit: 2028 l/min, providing the necessary power for pneumatic tools more demanding.

• Spike Profile: Compatible with ISO 6150 B.

• Prevo S1 Safety: Single-pulse button disconnection for safe air purging, avoiding whiplash effect.

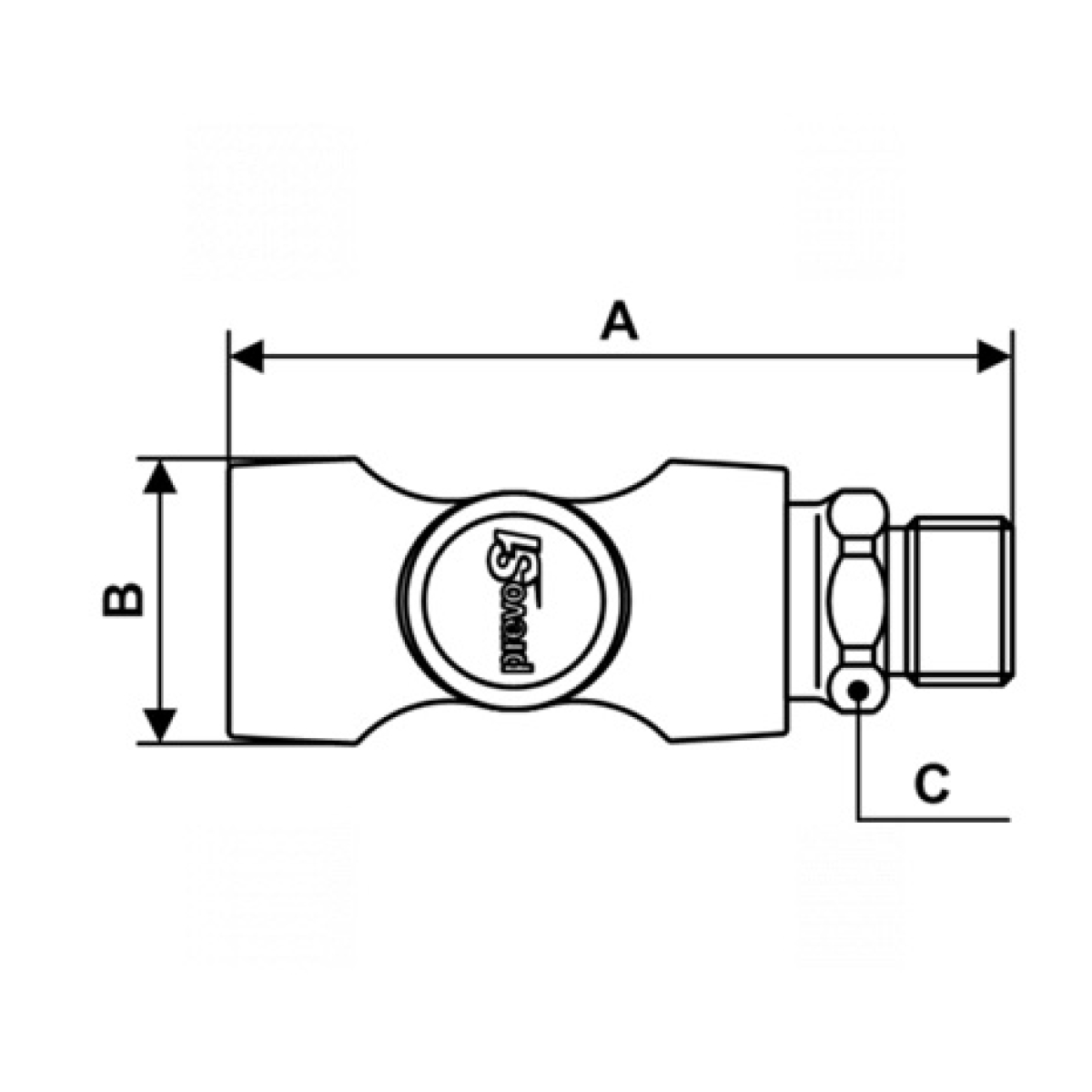

Dimensions and Design

• A (Length): 93.4 mm.

• B (Width): 33 mm.

• C (Key): 26 mm.

• Material: Highly durable technical composite body, anti-scratch and impact resistant in harsh environments. workshop.
