Product Description: Hydraulic Power for Medium Production

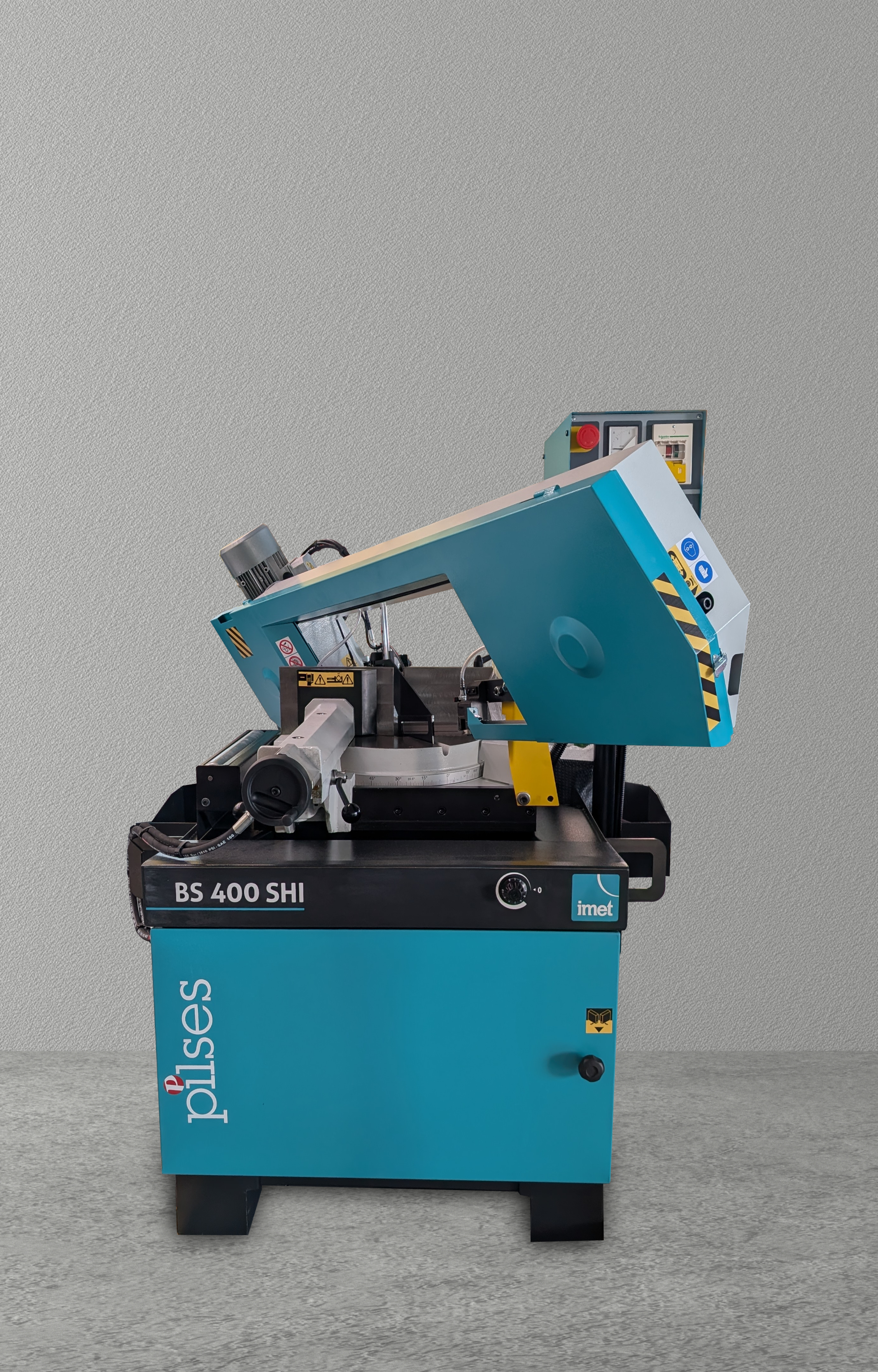

The IMET BS 400 SHI is a band saw designed for professional cutting of high-strength materials. Its semi-automatic system allows the saw frame to automatically return to its initial position after each cut, optimizing cycle times in workshops. It is the ultimate tool for working with cast iron, alloy steels, and heavy structural profiles.

Cutting Versatility and Ergonomics

• Angled Cutting: High operational flexibility with a turning capacity of up to 45º to the right and 60º to the left, allowing for complex miter cuts without moving the material.
• Semi-Automatic Operation: The cycle includes vise closure, saw frame lowering, cutting, blade stop, and saw frame raising, greatly simplifying the operator's work.
• High Rigidity Structure: Robust construction that absorbs vibrations, ensuring that the perpendicularity of the cut remains constant, even in large-section solids.

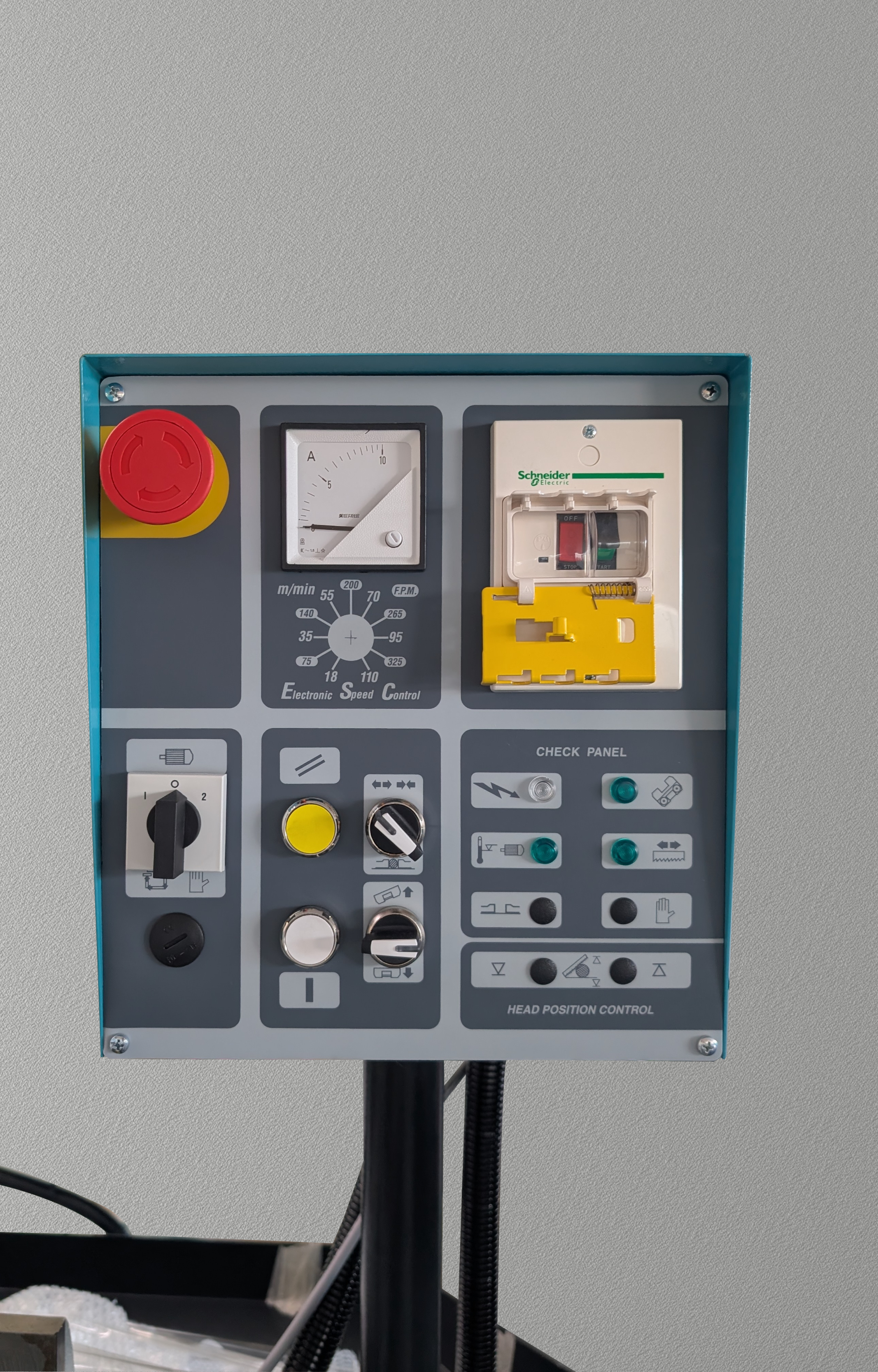

• Intuitive Control Panel: Centralized controls for precise management of descent speed and cutting pressure.

Key Technical Specifications

• Model: BS 400 SHI
• Operation: Semi-automatic Hydraulic
• Angle Capacity: +45° / -60°
• Materials: Steel, Cast Iron, Stainless Steel, and High-Strength Metals
• Cooling System: Integrated electric pump for constant blade lubrication
• Clamp: Quick-release hydraulic clamp for secure workpiece clamping
