HSS Centering Drill Bit 2.5x6.3 mm Dormer A200 | Ref. A2002.5X6.3

051A2000250
pilses_prod_2
pilses_prod_3
pilses_prod_4
pilses_1
pilses_2
pilses_3
pilses_4

REF: 051A2000250

High Precision in Spot Welding and Turning Centers

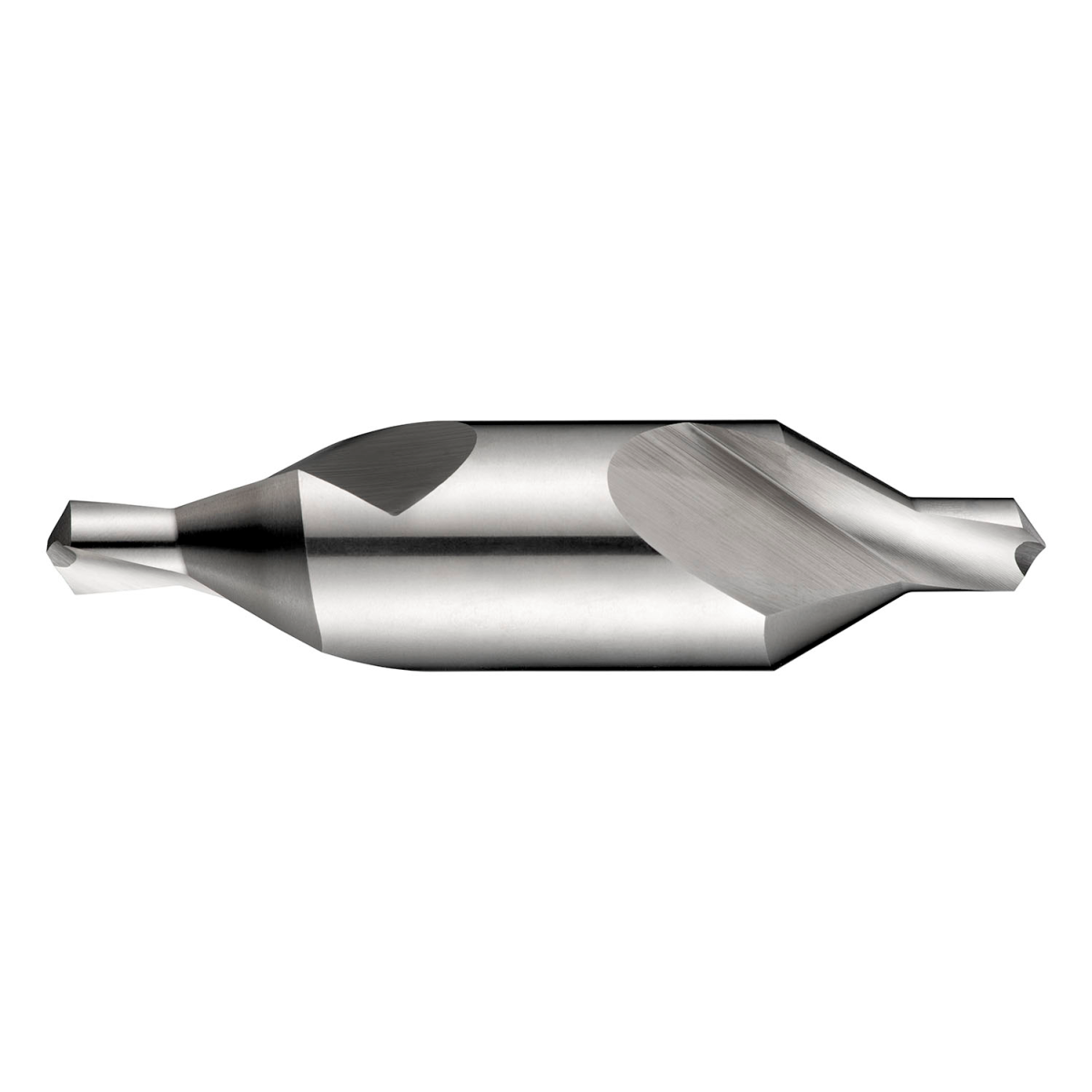

HSS combined center drill bit 2.50 mm tip diameter and 6.30 mm body (Reference: A2002.5X6.3). Belonging to the legendary A200 series from Dormer, it has a countersink angle at 60, angle from tip to 118° and manufacturing under DIN 333A Form A standard for dotted with precision.

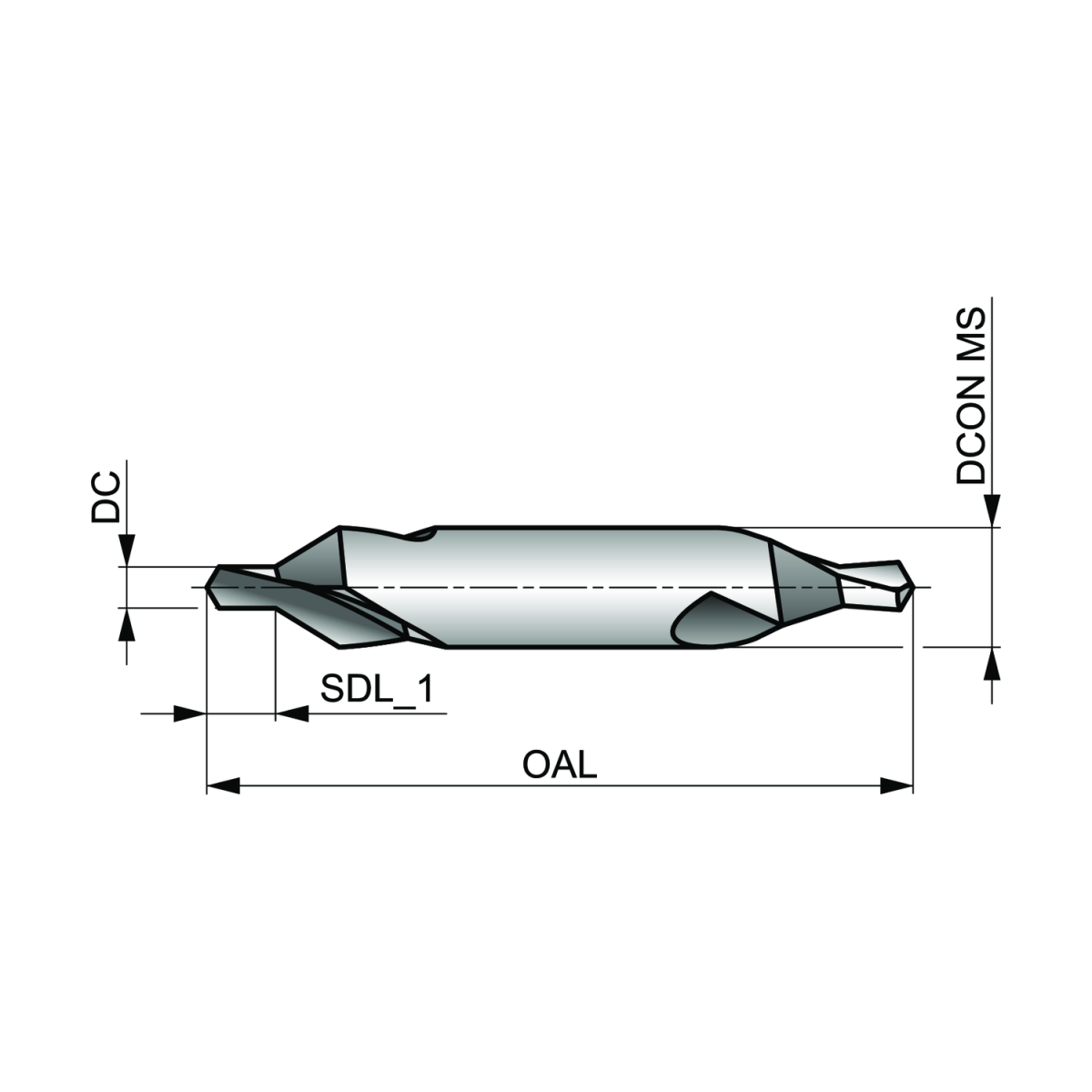

Product Technical Specifications

  • Manufacturer / Brand: Dormer Tools.

  • Range / Series: A200.

  • Code / Reference: A2002.5X6.3.

  • Tool Type: Combined center drill and countersink.

  • Drill/Tip Diameter: 2.50 mm.

  • Body / Stem Diameter: 6.30 mm.

  • Total Length (OAL): 45 mm.

  • Drill Tip Angle: 118°.

  • Cutting Direction: Cut to the right.

  • Material: High speed steel (HSS).

  • Surface Finish: Glossy (without coating).

  • Regulations Compliant: DIN 333A (Form A) / DIN 332 Part 1.

  • Depth/Diameter Ratio: 1D.

HSS Centering Drill Bit 2.5x6.3 mm Dormer A200 | Ref. A2002.5X6.3

VAT included
15.13€
