REF: 806CSM081102

Product Description: Superior Performance in Corrosive Environments

The CSM 081102 Plug has been designed to deliver a massive flow rate of 2120 l/min without compromising safety. Its construction in high-quality stainless steel makes it suitable for the marine, food, and chemical sectors, withstanding pressures of up to 16 bar. As part of the Prevost safety family, it guarantees a controlled disconnection that eliminates the risk of whiplash, protecting both the operator and the installation.

Professional Grade Technical Specifications

• Input connection: Cylindrical female thread G 3/8" (BSPP)..

• Connection Profile: ISO 6150 C (8 mm pitch). Ideal for tools requiring a large volume of air. Safety Technology: Push-button disconnect system that purges air from the hose before releasing the connector (ISO 4414 standard). Air Flow: 2,120 l/min (at 6 bar), ensuring your equipment operates at 100% capacity. Body Material: Stainless Steel, resistant to oxidation, salt spray, and cleaning chemicals. data-index-in-node="0">Thermal Range: Operational from -15°C to +70°C.

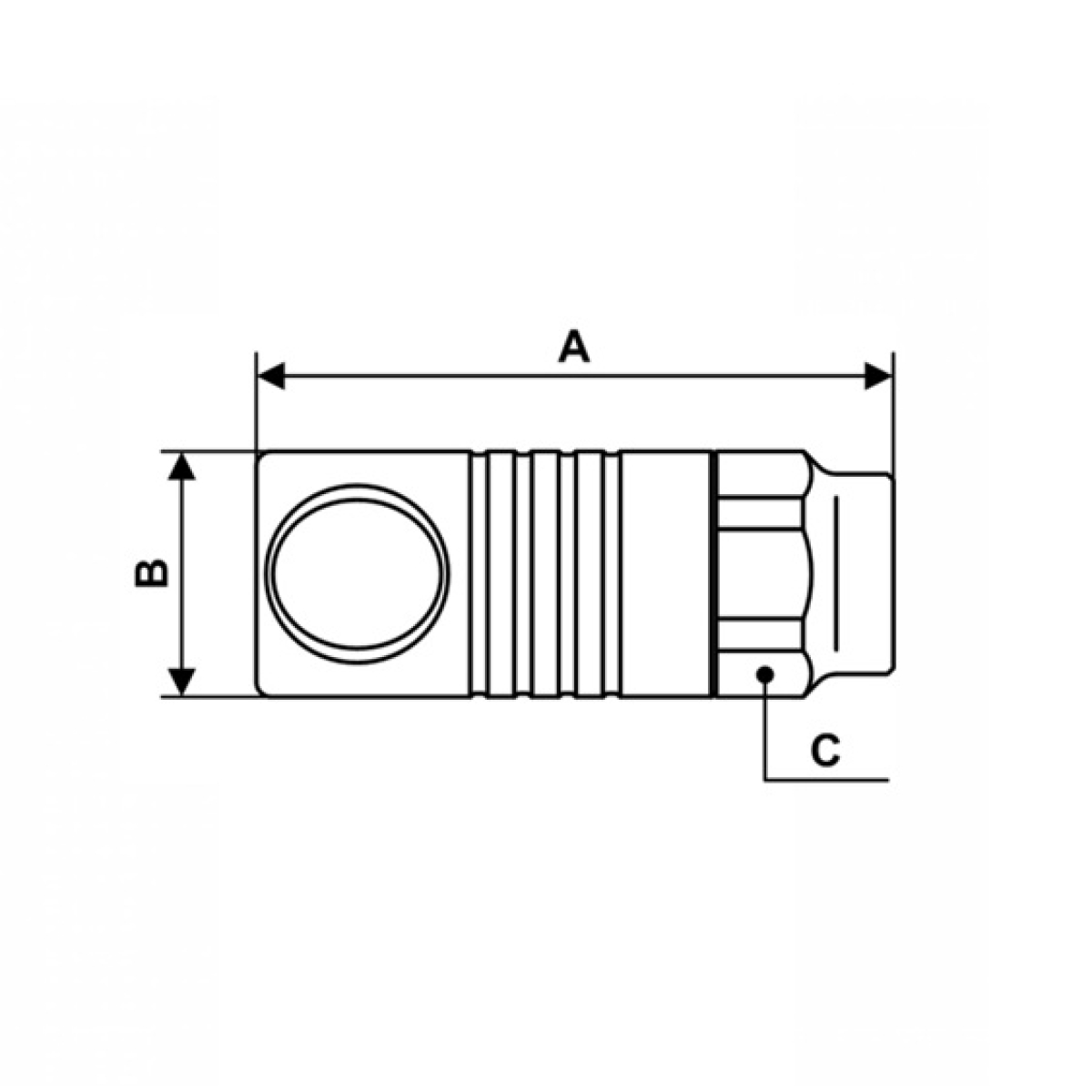

Dimensions and Geometry

• A (Total length):74.5 mm.

• B (Body diameter): 27 mm.

• C (Key width): 25 mm.

• Ø of passage: 8 mm actual for unrestricted flow.
