REF: 283112040030

Product Description: Precision and Flexibility in Small Diameters

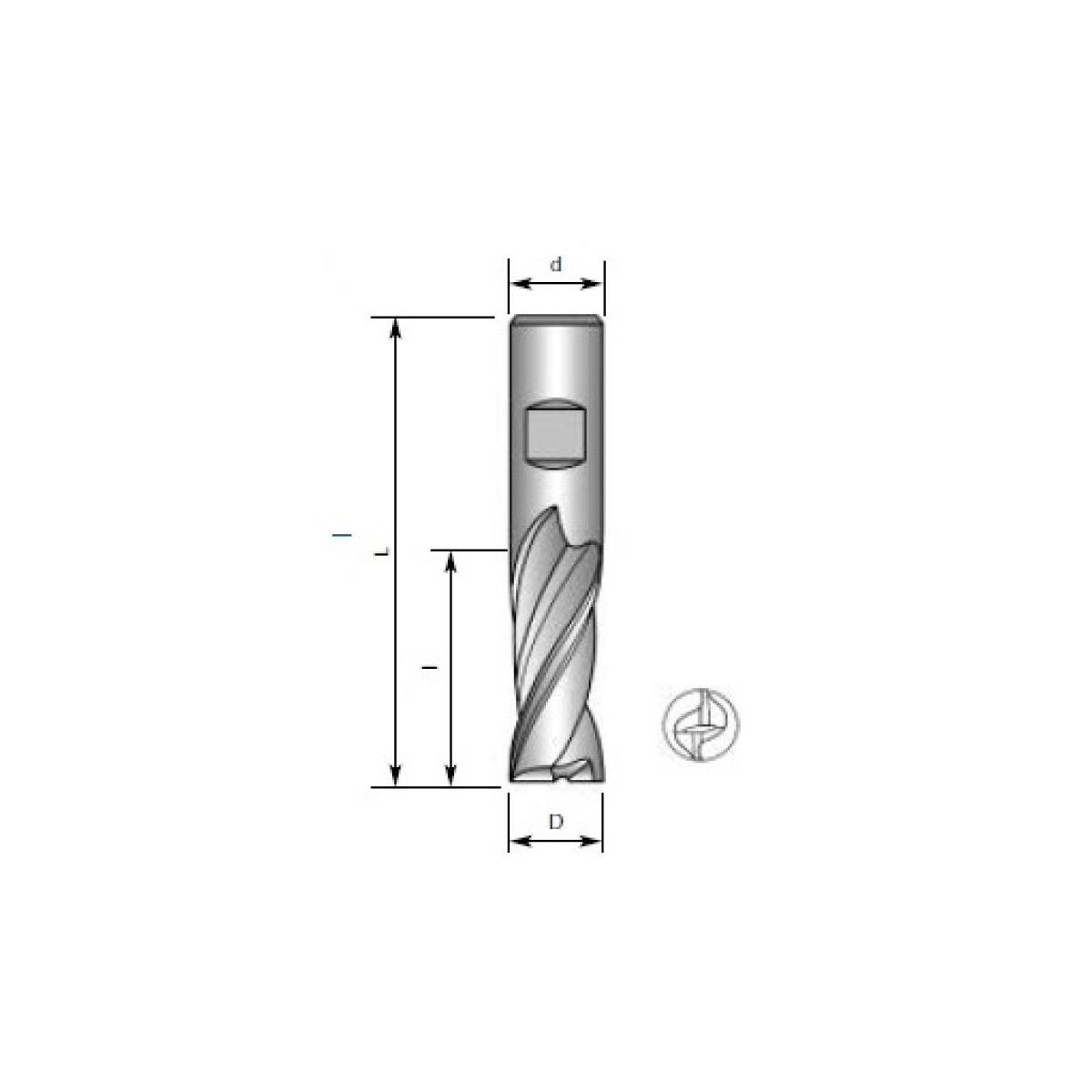

The Carmon CL12S0400 milling cutter stands out for its manufacture using powder metallurgy (sintering). In diameters as small as 4 mm, the elasticity of sintered steel is a critical advantage, as it allows the absorption of small deflections that would break a conventional carbide end mill. Being a Long Series, it facilitates machining in cavities where the neck length is crucial for the success of the job.

Precision Technical Specifications

• Brand: Carmon (European reference in cutting tools).

• Product Code: CL12S0400.

• Cutting Diameter (DC): 4.0 mm.

• Number of Lips (Z): 2 (Optimized design for rapid chip evacuation, avoiding clogging in narrow slots).

• Material: Sintered Steel (Maximum resistance to breakage due to fatigue and vibration).

• Handle Type: Cylindrical (Ideal for high precision ER collets).

• Center Cut: Allows vertical penetration (plunging)and ramp immersion.

• Series: CL12 (Long Series / Long Series).
