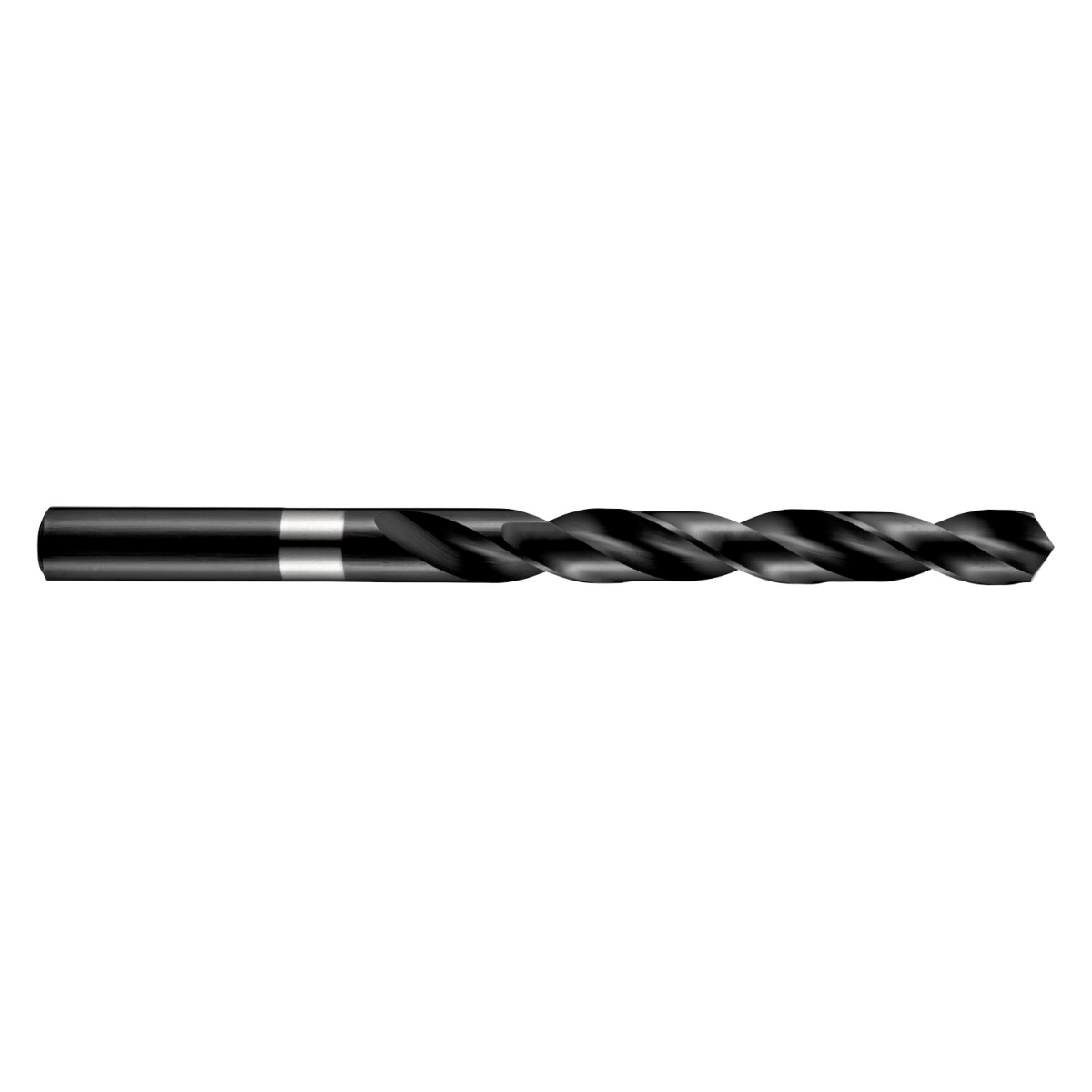

Dormer A100 Drill Bit 6.70 mm (A1006.7) | HSS DIN 338
REF: 051A1000670
A1006.7
Short Series Drill Bit
Short series drill bit with cylindrical shank, 6.7 mm diameter, 101 mm overall length, and 63 mm cutting edge length according to DIN 338 with a 118° point angle, HSS with a steam-blown finish and a standard 4xD helix for non-chipping drilling in steel
Product Characteristic
- Steam-hardened surface treatment (steam oxidation)
- High-speed steel
- DIN 338 - Standards for straight shank drills
- Tool depth-to-diameter ratio useful 4xD
- Drill tip 118°
- Cylindrical handle/straight handle
- Standard helical evacuation channel design
- Right turn/cut
- h8 - Industry standard tool tolerance class (based on diameter range)

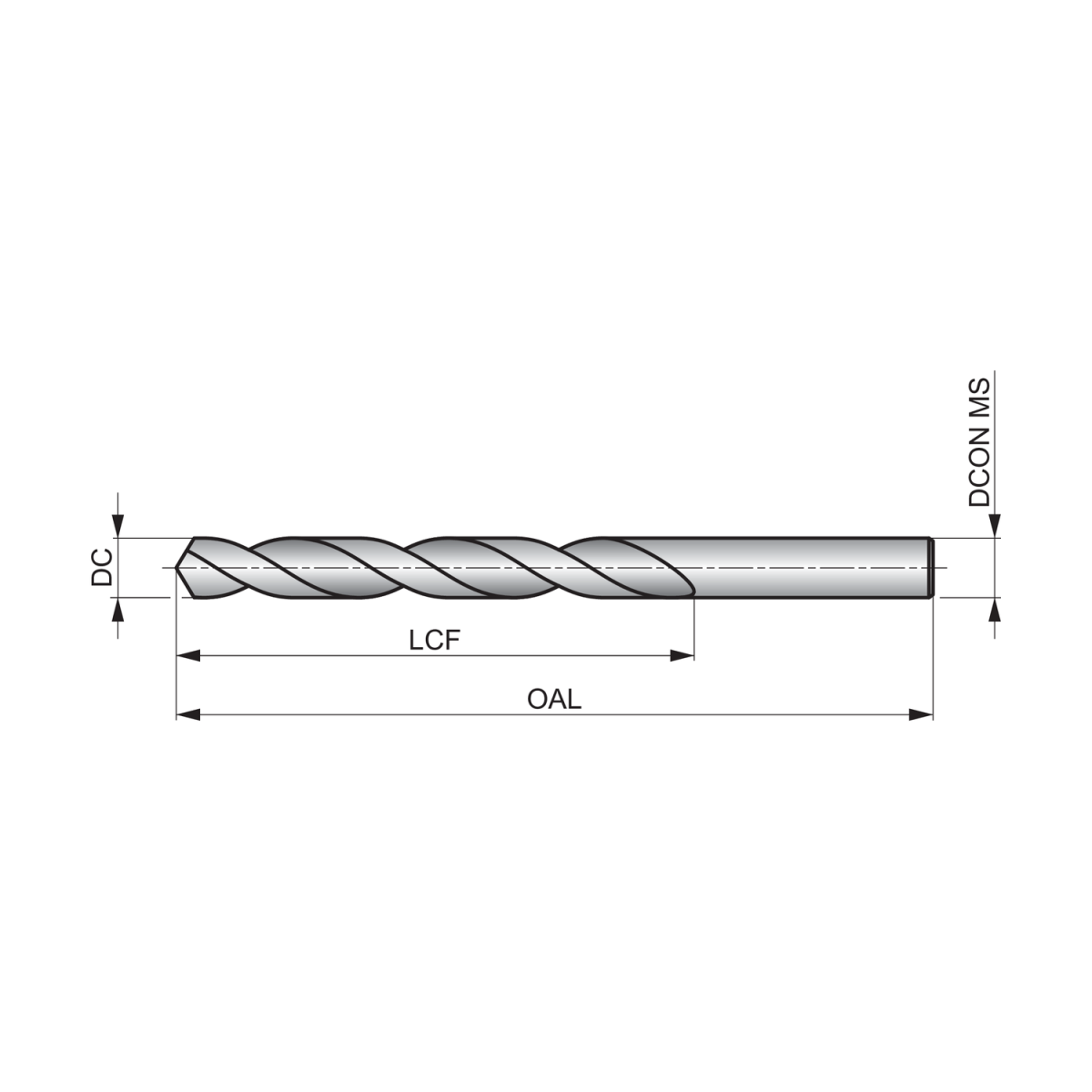

Product Detail
| Connection diameter - millimeters (DCON MS) | 6.7 mm |
| Cutting diameter - millimeters (DC) | 6.7 mm |
| Chip channel length - millimeters (LCF) | 63 mm |
| Overall length - millimeters (OAL) | 101 mm |
| Net weight - gram | 19.5 |
| Gross Weight - gram | 21.14 |
Dormer A100 Drill Bit 6.70 mm (A1006.7) | HSS DIN 338
VAT included
7.50€
