REF: 105M0210

Product Description: Precision and Ease in Die Cutting

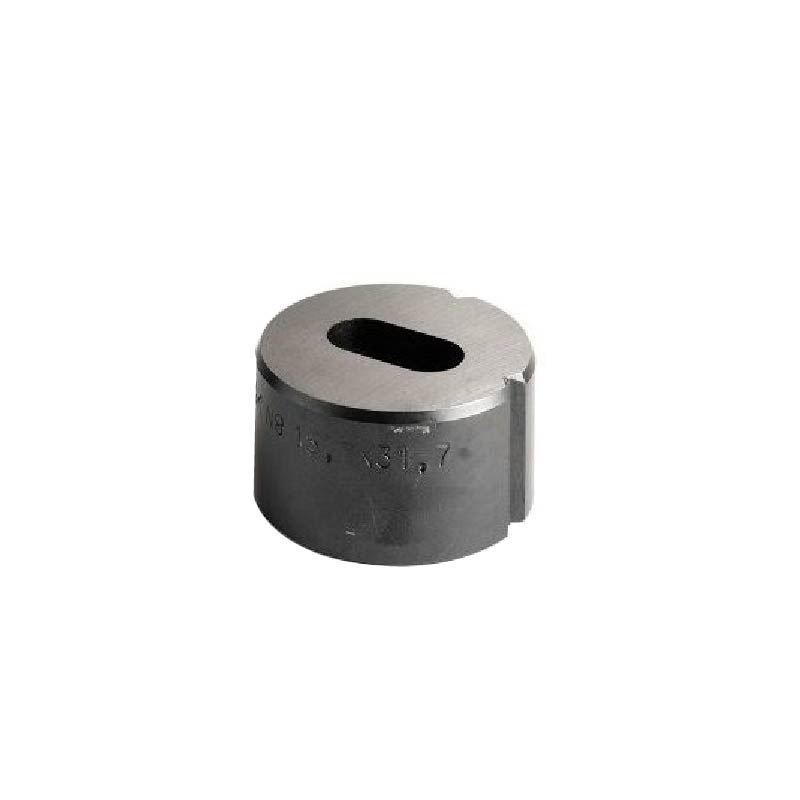

The M8O1570x3170 Die has been designed to offer rigid support and efficient scrap evacuation. With a perimeter clearance of 0.7 mm ($15.7 \times 31.7 \text{ mm}$ of actual opening), this die reduces lateral friction during the cutting process, resulting in less heat generation and less wear on both the punch and the die itself.

Technical Specifications

• Geometry: Oblong (Torn).

• Nominal Measurement: 15 x 31 mm.

• Actual Opening Measurement: 15.7 x 31.7 mm (technical clearance of 0.7 mm).

• Compatibility Series: No. 8 (Standard for universal punching machines).

• Material: Special high-alloy steel, ground and hardened to withstand extreme working pressures.

• Application: Ideal for punching adjustment holes in sheet steel and industrial profiles.
