Prevost CSM 061153 G 1/2 M Safety Plug | Stainless Steel C Profile
REF: 806CSM061153
Product Description: Robust Connection and Corrosion Resistance
The CSM 061153 Quick Plug offers a unique combination of durability and safety. Featuring a 1/2" male thread, it allows for firm and direct mounting on main power outlets. Its all-stainless steel construction ensures that the component withstands extreme environmental conditions and aggressive cleaning processes without compromising air purity or the integrity of the plug. Technical Specifications Precision Technical Specifications data-path-to-node="9">
Connection: Cylindrical male thread G 1/2".
Security Profile: ISO 6150 C (6 mm step). A superior safety standard for critical industrial applications.
Material: Body and components in Stainless Steel, eliminating any risk of corrosion.
Prevo S1 Safety: Controlled air purging system, preventing whiplash and protecting the operator (ISO 4414).
Performance: Flow rate of 833 l/min at 6 bar, with a maximum pressure of use of 16 bar.
Range Thermal:Designed to work between -15°C and +70°C.

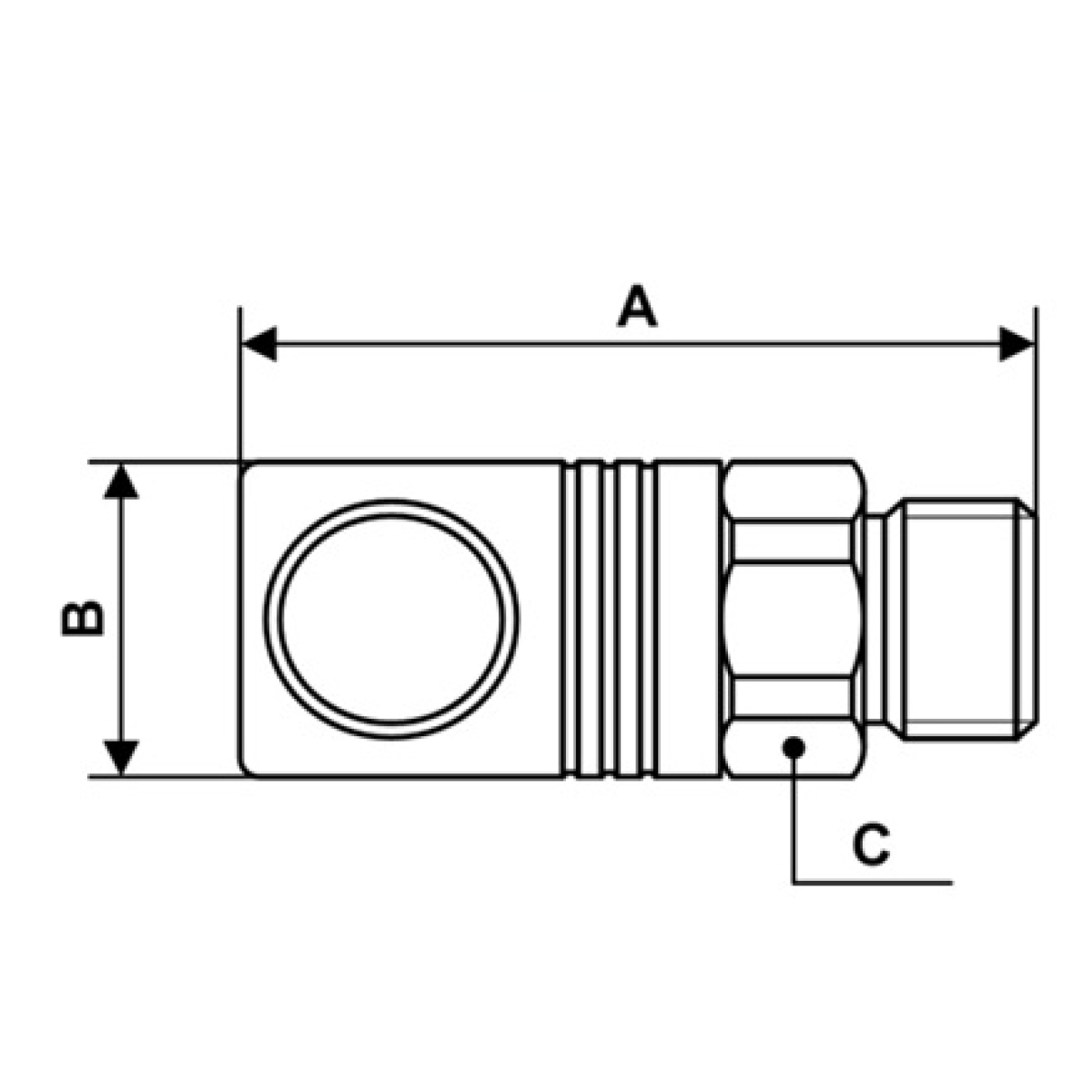

Dimensions and Mounting
-
A (Total length): 57.5 mm.
-
B (Body diameter): 22 mm.
-
C (Key): 23 mm.
-
Shutter: Simple shutter system for optimized air passage.
