REF: 682R113011120

Reinforced Ø8 mm Shank: Maximum Rigidity and Zero Vibration

The 113011120 milling cutter is designed for operations involving high torque transmission and extreme bending forces. The 8 mm shank provides superior rigidity compared to the standard 6 mm shank, eliminating the risk of bending, dampening vibrations, and allowing the Ø16 mm head to fully utilize the HP-3 Cut (cross-cut) geometry for both deep lateral passes and plunge cuts.

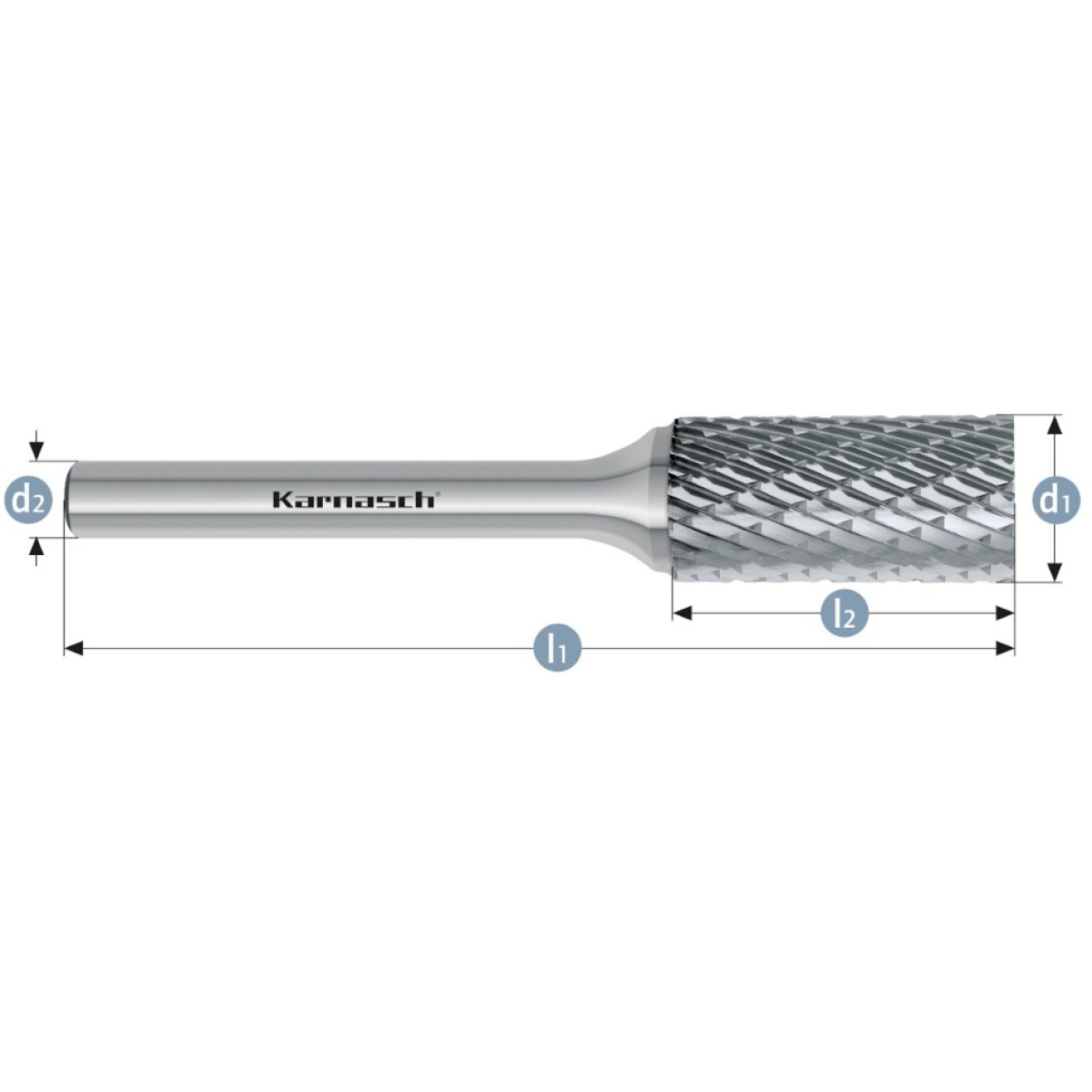

D1 = 16 mm

D2 = 8 mm

L1 = 70 mm

L2 = 25 mm

Rotary burr, ZYB, with end cut, HP3 cut, uncoated

PRODUCT DETAILS:

HP-3-CUT

Technical specifications:

Results from the most widely used universal cut style:

• High cutting action due to cross-cut style
• Smooth operation
• Short chips
• For use on all ferrous materials such as:
• Cast iron - Steel < 60 HRC
• Stainless steel (INOX)
• Nickel-based and titanium alloys
• Copper
• Brass
• Bronze
