REF: 682R113011050

High Stock Removal, Smooth Operation, and Short Chips

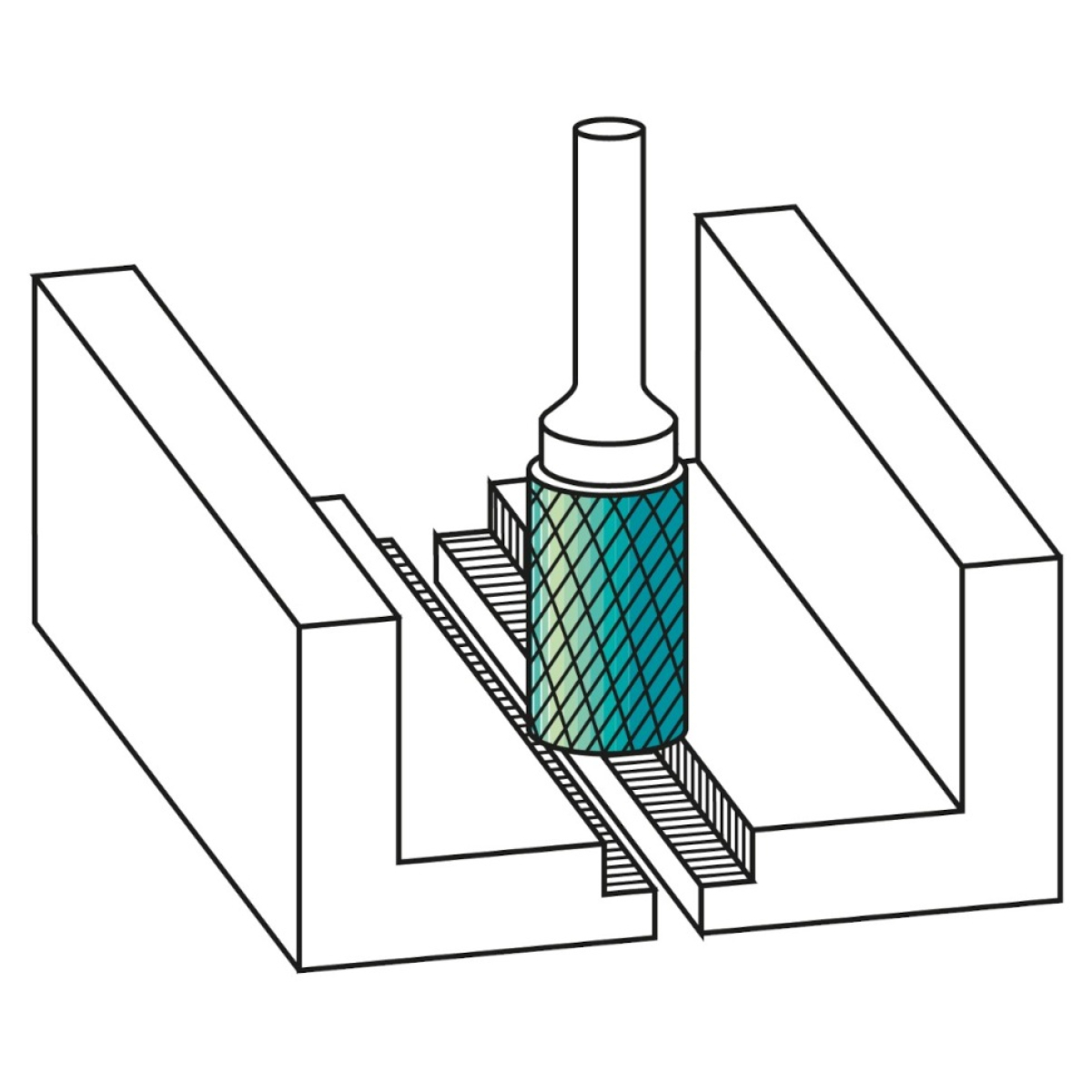

The 113011050 burr features the renowned HP-3 Cut cross-cut pattern—Karnasch’s most efficient universal cutting geometry. Its advanced design combines extremely fast material removal with stable, vibration-free operation, producing short chips that minimize clogging and enhance operational safety during weld seam grinding, chamfering, or deburring.

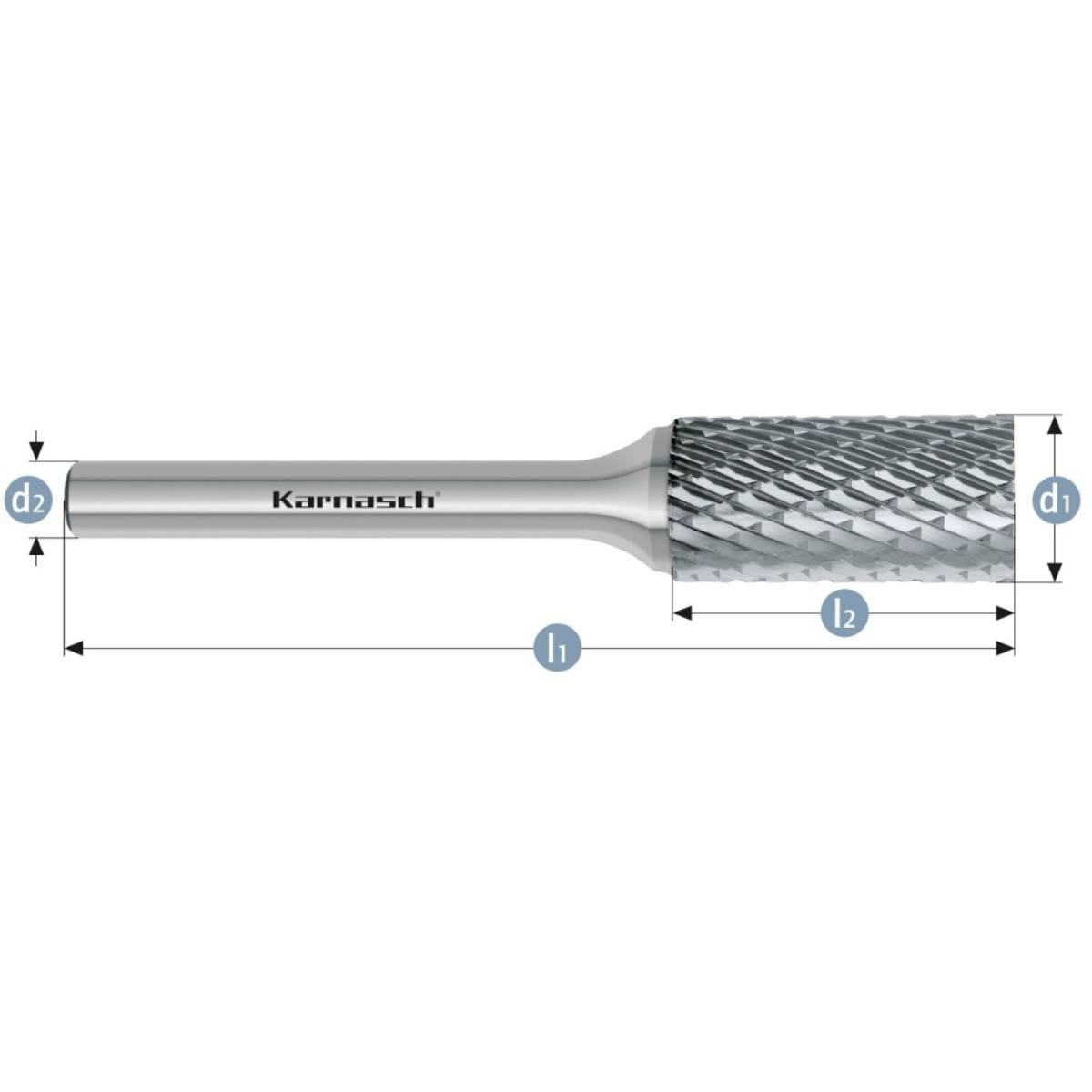

D1 = 6 mm

D2 = 6 mm

L1 = 50 mm

L2 = 18 mm

Rotary burr, ZYB (Cylindrical with end cut), HP-3 cut, uncoated

PRODUCT DETAILS:

HP-3-CUT

Technical specifications:

Performance of the most widely used universal cut style:

• High cutting action due to cross-cut style
• Smooth operation
• Short chips
• For use on all ferrous materials, such as:
• Cast iron - Steel < 60 HRC
• Stainless steel (INOX)
• Nickel-based and titanium alloys
• Copper
• Brass
• Bronze
