REF: 105M0086

Precision in Sliding Holes and High Strength

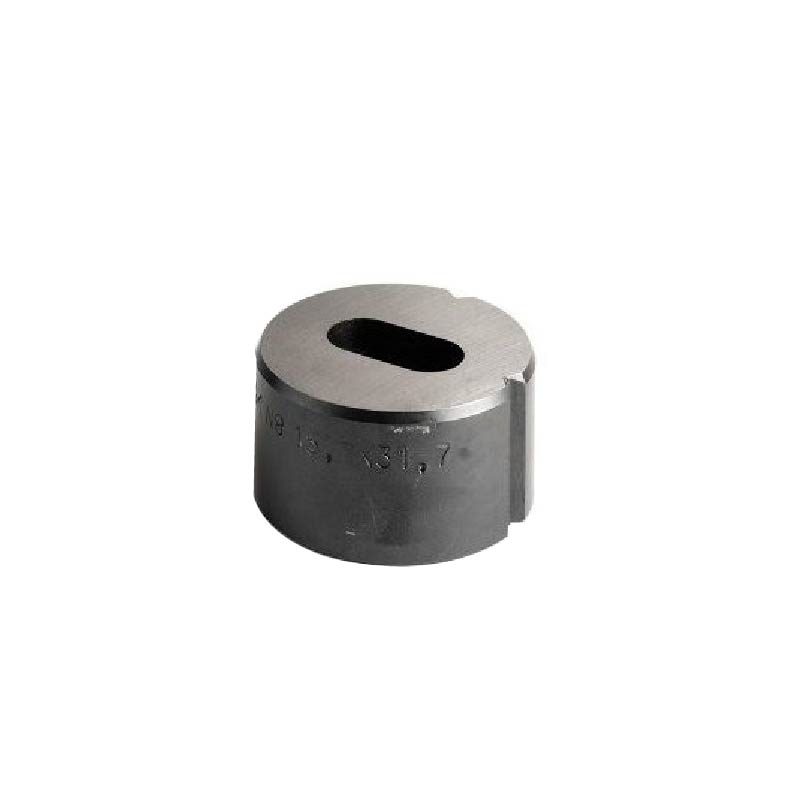

Punching die with oblong (oval) geometry of 11x23 mm compatible with Type 6 series die holders. It has a cutting clearance of 0.7 mm, ideal for making sliding holes and adjustable joints in sheet metal.

Technical Specifications

• Model Reference: M6O1170x2370.

• Shape: Oblong / Coliso (Oval).

• Nominal Dimensions: 11 mm x 23 mm.

• Cutting Clearance (H): 0.7 mm.

• Tooling Type: Nº6.

• Application: Punching and light drawing of sheets and plates.
