REF: 105M0129

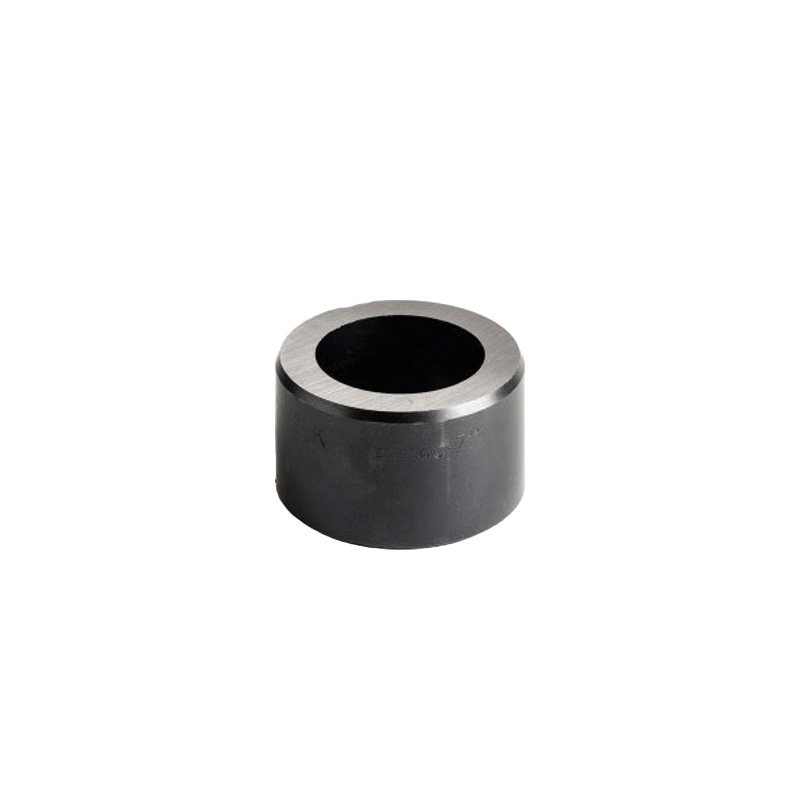

Product Description: Precision in Round Punching

The No. 8 round die (Ref: M8R1420) is a high-precision component for industrial punching machines. With a nominal diameter of 13.5 mm and a technical clearance of 0.7 mm, this die ensures perfect shim removal and a perimeter finish of the hole without excessive deformation.

Technical Specifications

• Reference: M8R1420

• Model: No. 8 (Standard for large tonnage machines type GEKA)

• Shape: Round

• Compatible Punch Diameter: $13.5$ mm

• Clearance (H): $0.7$ mm (Inner diameter of die: $14.2$ mm)

• Material: Integrally hardened tool steel, designed to resist wear abrasive.

Advantages of 0.7 mm Clearance

At Pilses, we bring our more than 50 years of experience to help you choose the right tool:

• Quality Cutting: This clearance is Adjustable for medium-thickness sheets, preventing material tearing or unnecessary lateral wear on the punch.

• Deburring: By maintaining a tolerance of 0.7 mm, the resulting hole for M12 screws is clean and ready for assembly, without the need for manual finishing.

Applications Professionals

It is a fundamental piece in:

• Metal Structures: Drilling of joining plates and flat bars.

• Boilermaking: Preparation of parts for bolted assemblies.

• Industrial Maintenance: Standard replacement for punching machines.
