REF: 105M0525

Dimensional Accuracy and Wear Resistance in Punching Operations

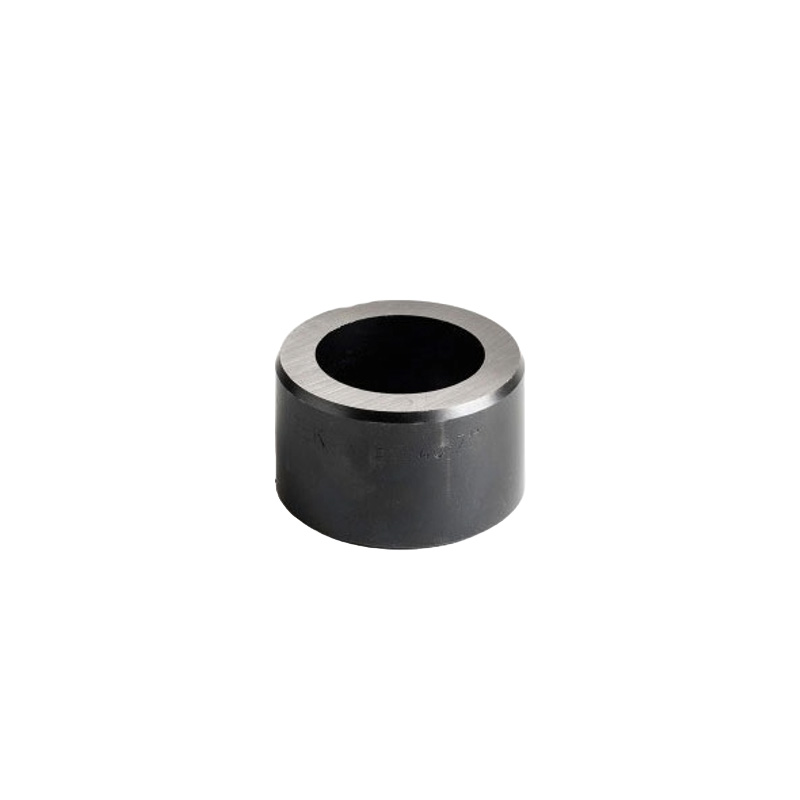

Round geometry Nº8 industrial punching die with an inner diameter of 37.0 mm and a technical clearance (H) of 0.7 mm, model M8R3770. Manufactured from high-quality tool steel with optimized heat treatment to resist shear wear. Designed for mounting on mechanical and hydraulic punching presses, guaranteeing efficient scrap evacuation and clean cuts in steel sheets and non-ferrous metals.

Component Technical Specifications

• Tooling Type: Die for punching/stamp-cutting press.

• Structure Number/Series: No. 8.

• Cutting Geometry: Round (Cylindrical).

• Inner Cutting Diameter: Ø37.0 mm.

• Clearance / Technical Play (H): 0.7 mm.

• Official Model: M8R3770.

• Distributor: Pilses S.L.
