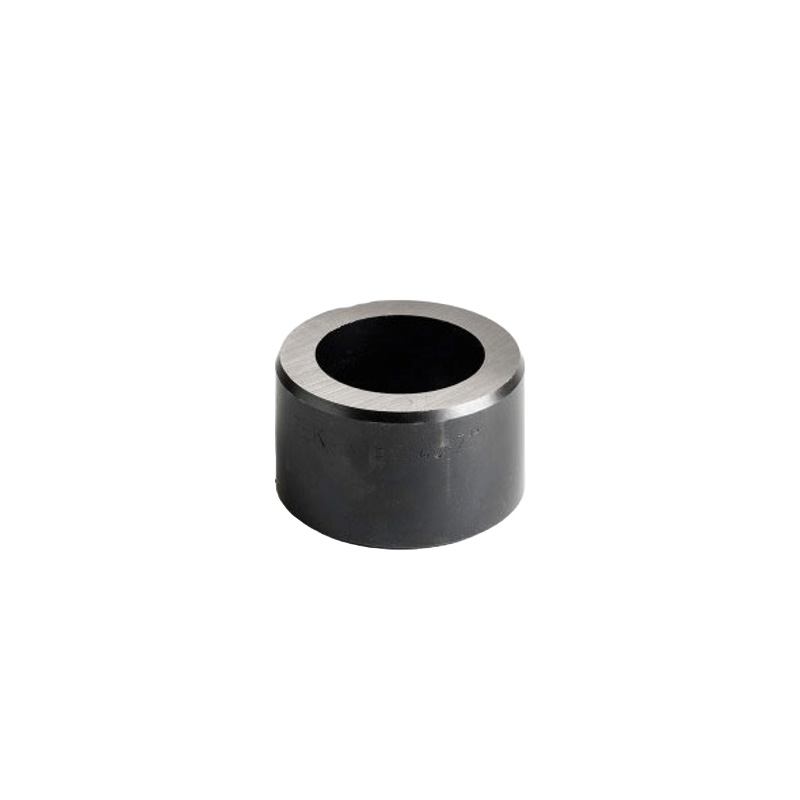

Matrix Nº6 Round Ø21.5 H.0.7mm | Ref. M6R2220

REF: 105M0038

Precise Cutting, Calculated Technical Clearance and Long Life Useful

The Nº6 M6R2220 round matrix is ??developed to withstand intensive work at the machine level. Its 0.7 mm clearance allows for optimal material deformation flow as the punch penetrates, reducing wear on the cutting edges of both the punch and the die, and preventing the slug from jamming in the lower opening.

Technical Advantages

Treated Tool Steel: High resistance to compression, frictional wear, and repetitive impact.
0.7 mm Clearance (Ø22.2 mm): Calculated for a clean, burr-free cut; ideal for optimizing punching operations on sheet metal of proportional thickness.
Precision-Ground Entry Geometry: Ensures a precise seat and perfect alignment with the punch within the punching machine.
Standard No. 6 Compatibility: Compatible with standard No. 6 die holders found on most universal hydraulic punching and shearing machines.

Product Technical Specifications

Product Reference: M6R2220.
Geometry: Round.
Nominal Punch Diameter: 21.5 mm.
Clearance: 0.7 mm.
Actual Mouth Diameter: 22.2 mm.
Norm / Standard: No. 6.
Material: Special cold-work alloy steel.
Heat Treatment: High-toughness hardening and tempering.
Machine Compatibility: Hydraulic punching machines, universal punching shears, and mechanical presses.
