Bodor M - Flagship | Tube Laser Cutting Machine
Synchronous dual process with four spindles
“High efficiency for different work cases”
-
Improved Safety: Providing a safe operating environment. The M5's 4-chuck mechanism ensures high-quality cutting without manual intervention, ensuring a hands-free operating environment with lower human costs.
-
Excellent load capacity: Meet a variety of demanding cutting needs. Ideal for processing heavy metal pipes, the M5 offers the ability to cut pipes with diameters up to 530 mm.
-
0 Excess Material Processing: Minimize manufacturing waste at the source. During operations, M5 will help you utilize every piece of material to the fullest extent possible, reducing waste and improving profitability.
Ask for quotation
Any questions? Contact us
Información adicional
Simultaneous cutting, loading and unloading
The M Series completely revolutionizes the process and efficiency. While cutting tubes, you can simultaneously start a new loading cycle or finish the previous unloading cycle, providing an unprecedentedly smooth and efficient processing experience.

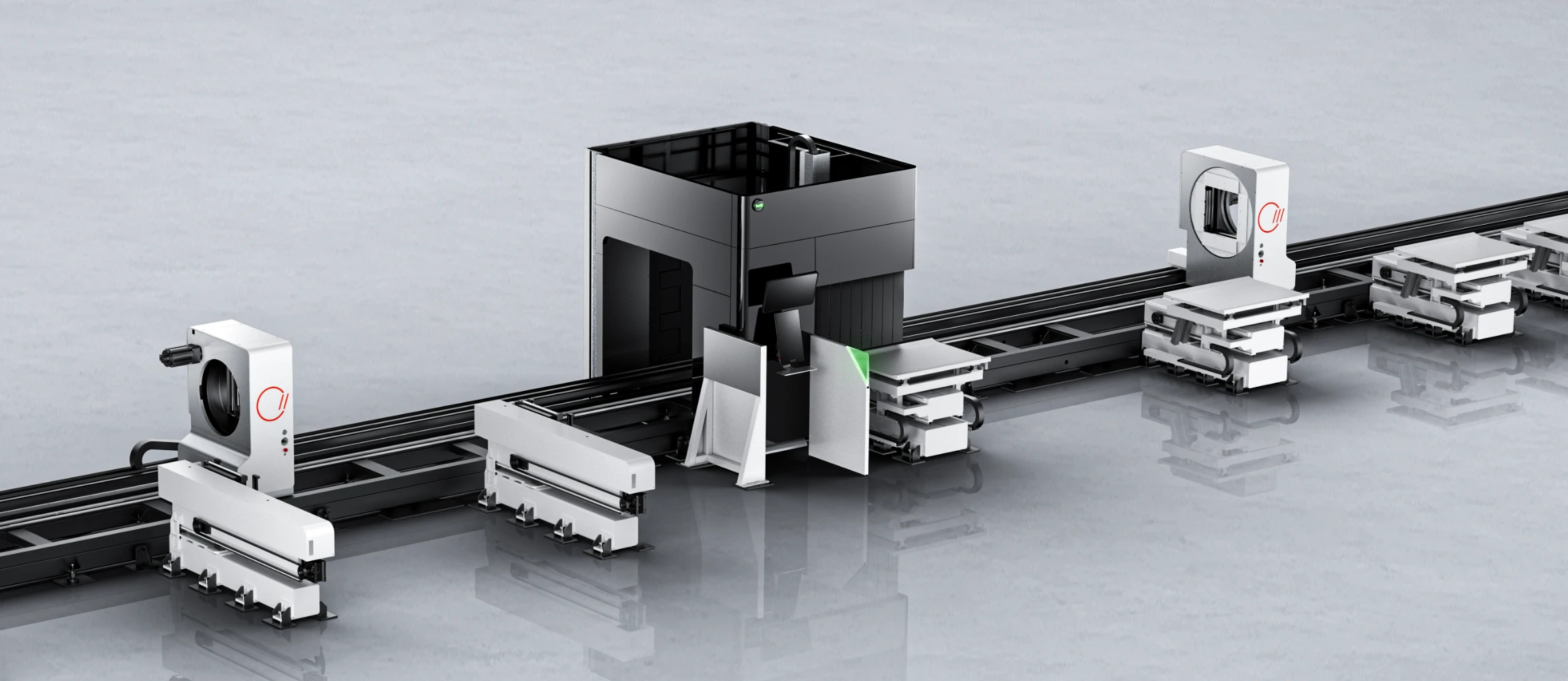

A new era of four-chuck processing
Four-chuck, multi-channel, unique in the industry
The M Series is a product of revolutionary innovation in the industry, marking the beginning of a new era of four-chuck.
_____________________________________________________________________________________________________________________

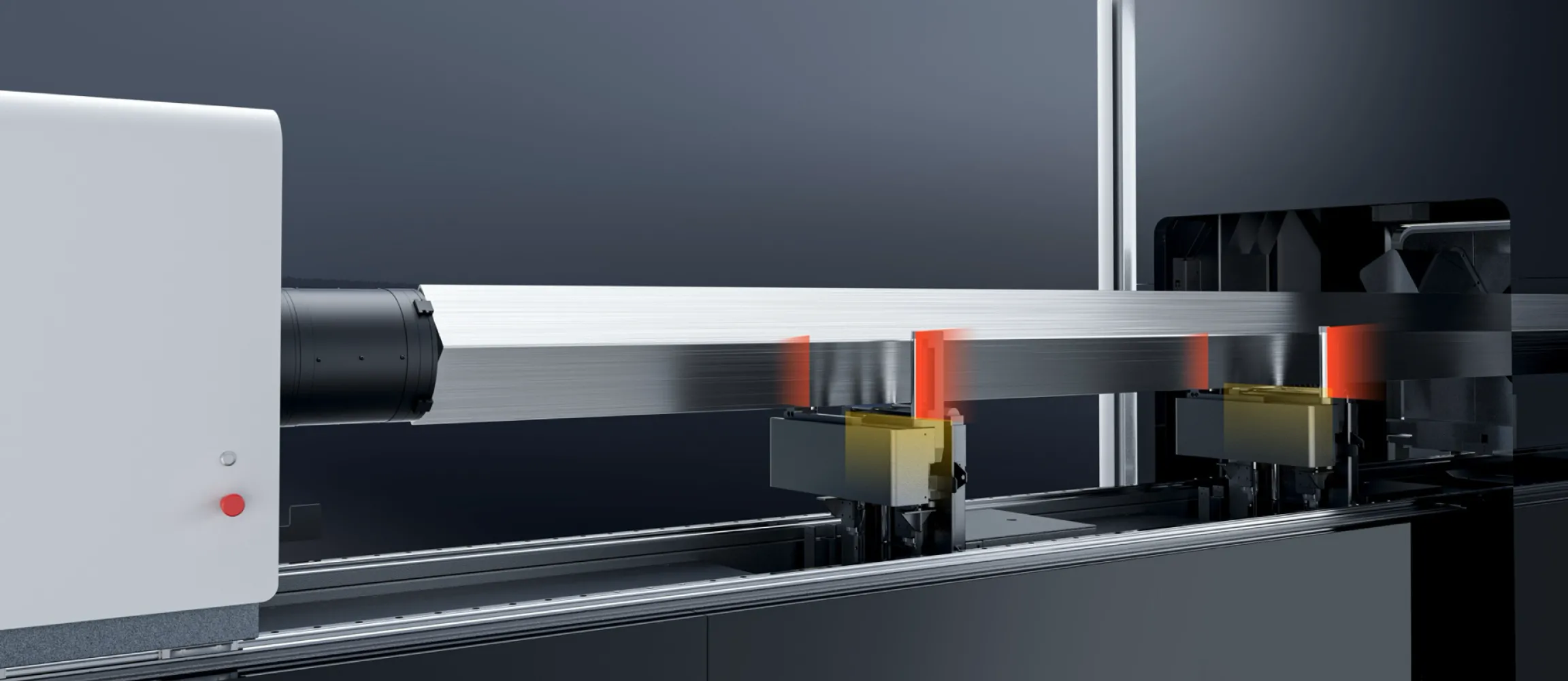

Four-mandrel processing for truly zero waste material
With the four-mandrel structure, when cutting the last section of any length of pipe, you can move the material forward or backward, achieving zero waste cutting.
Automatic download with 0 security risks
By adopting the four-chuck structure, the entire cutting and unloading process of the M Series requires no manual intervention, eliminating safety risks.

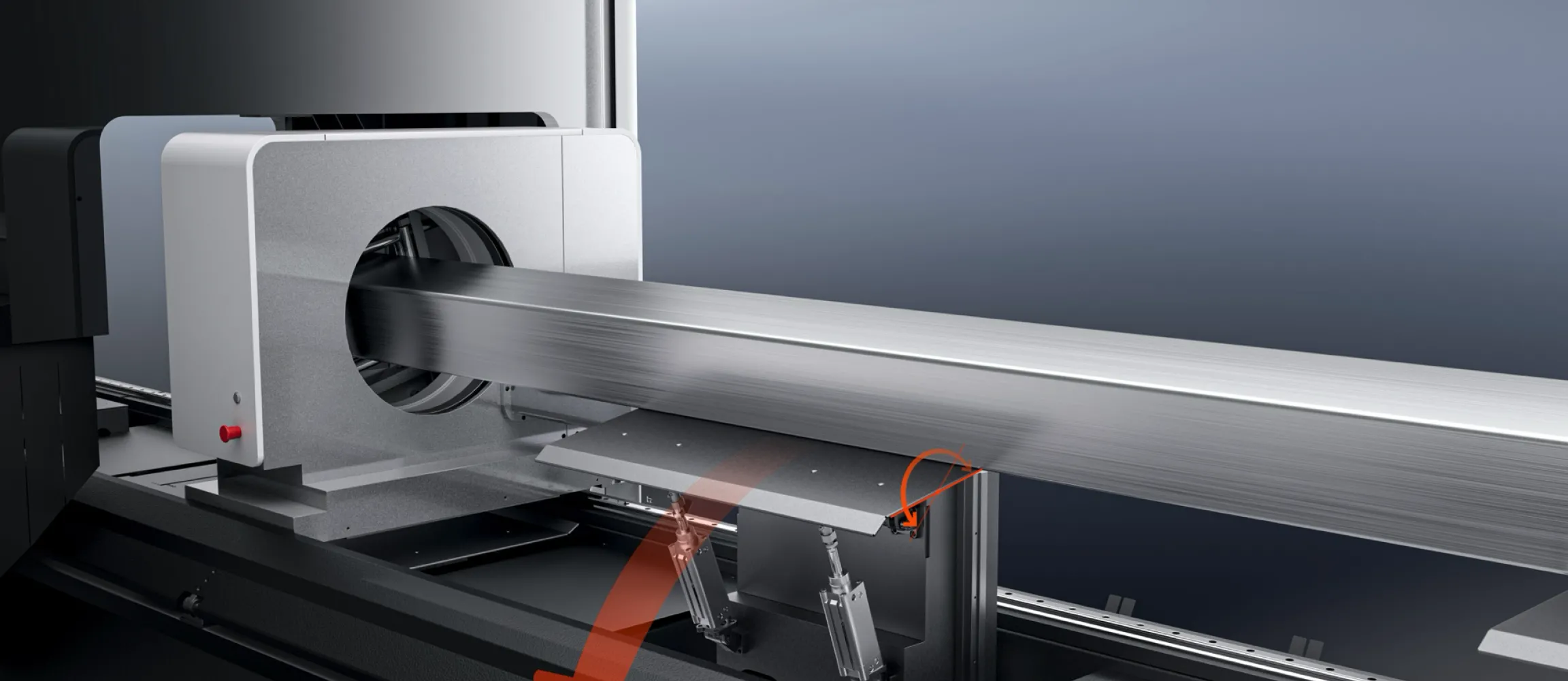

Precision jump track rollers (M2, M3)
With the support of tracking rollers and intelligent centering, loading and unloading efficiency increases by 30%, ensuring the pipe remains stable even during high-speed rotation, significantly improving cutting accuracy.

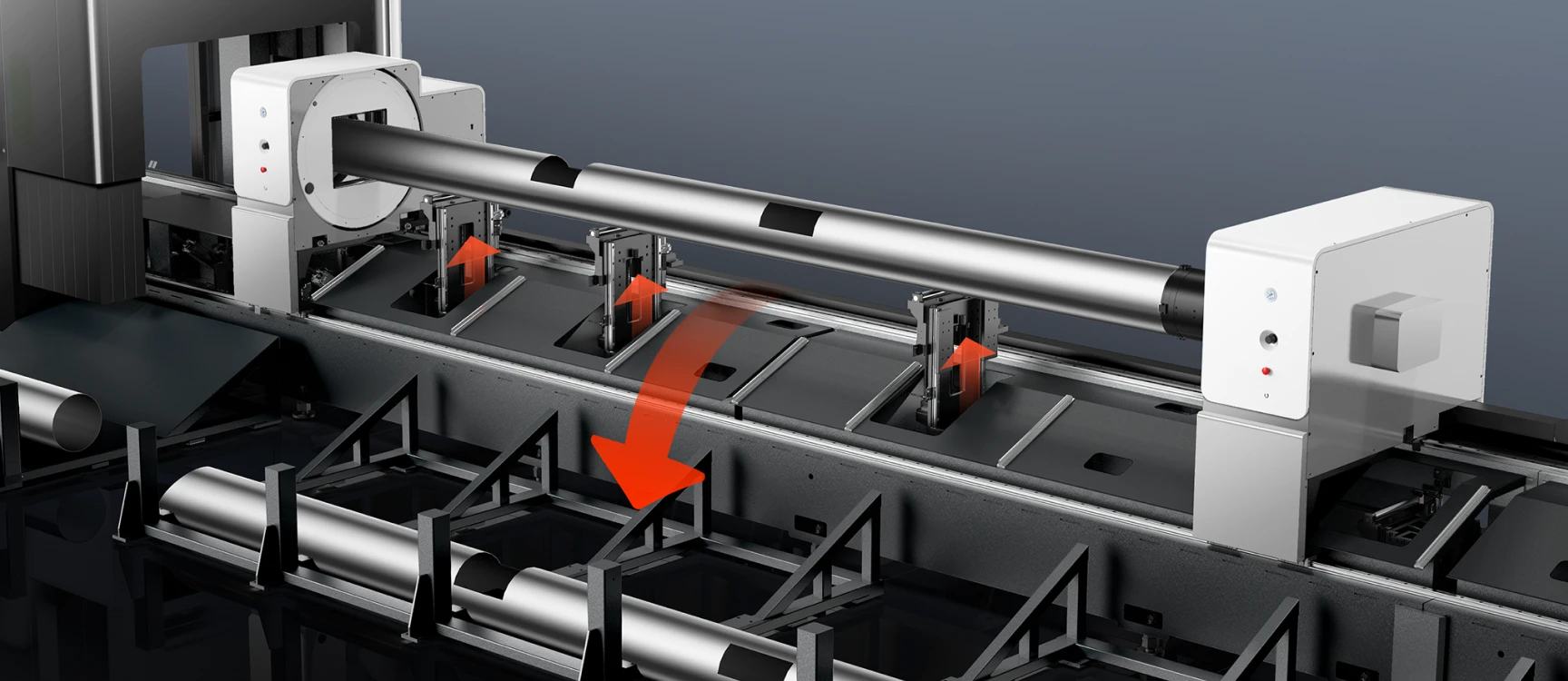

Even higher servo-tilt unloading accuracy (M2, M3)
The use of a new servo-rotating discharge method reduces workpiece movement during cutting and further improves cutting accuracy.

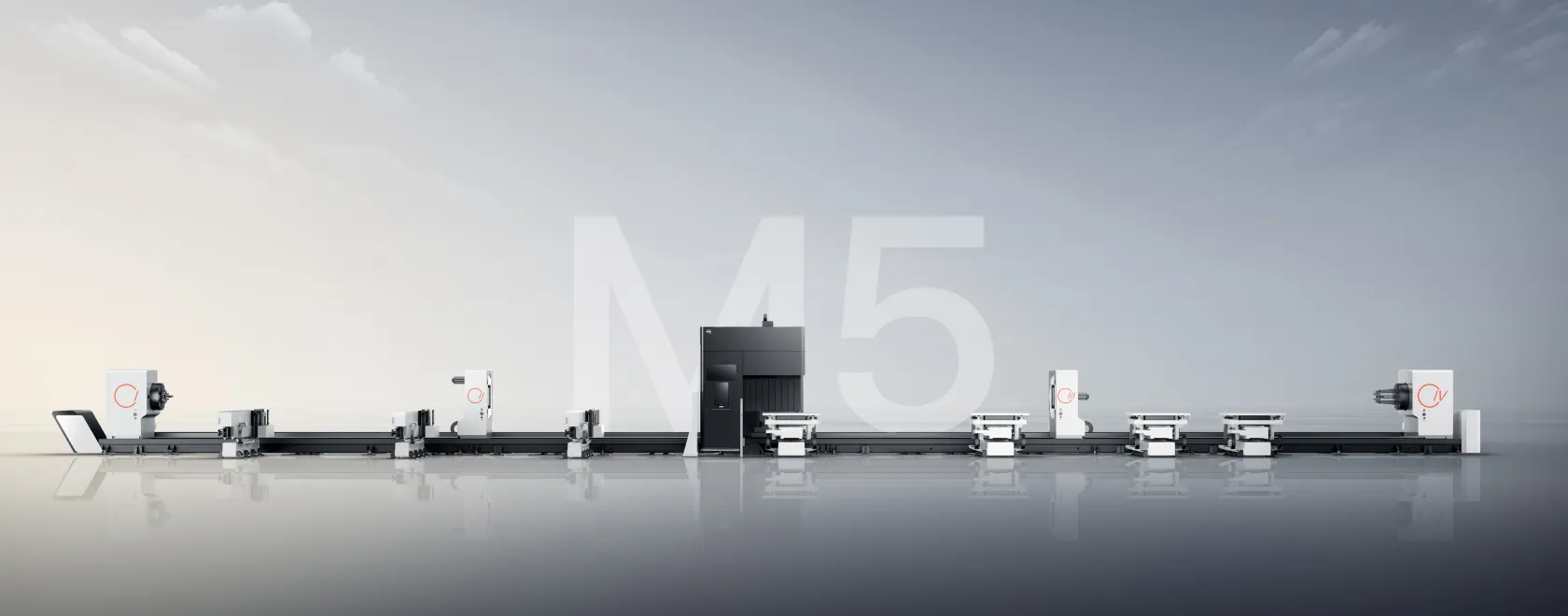

Fully automatic single-station loading and unloading (M5)
The standard configuration of the single-station loading and unloading device allows for cyclical pipe loading. Speed is more than doubled compared to manual loading.
__________________________________________________________________________________________________________________________

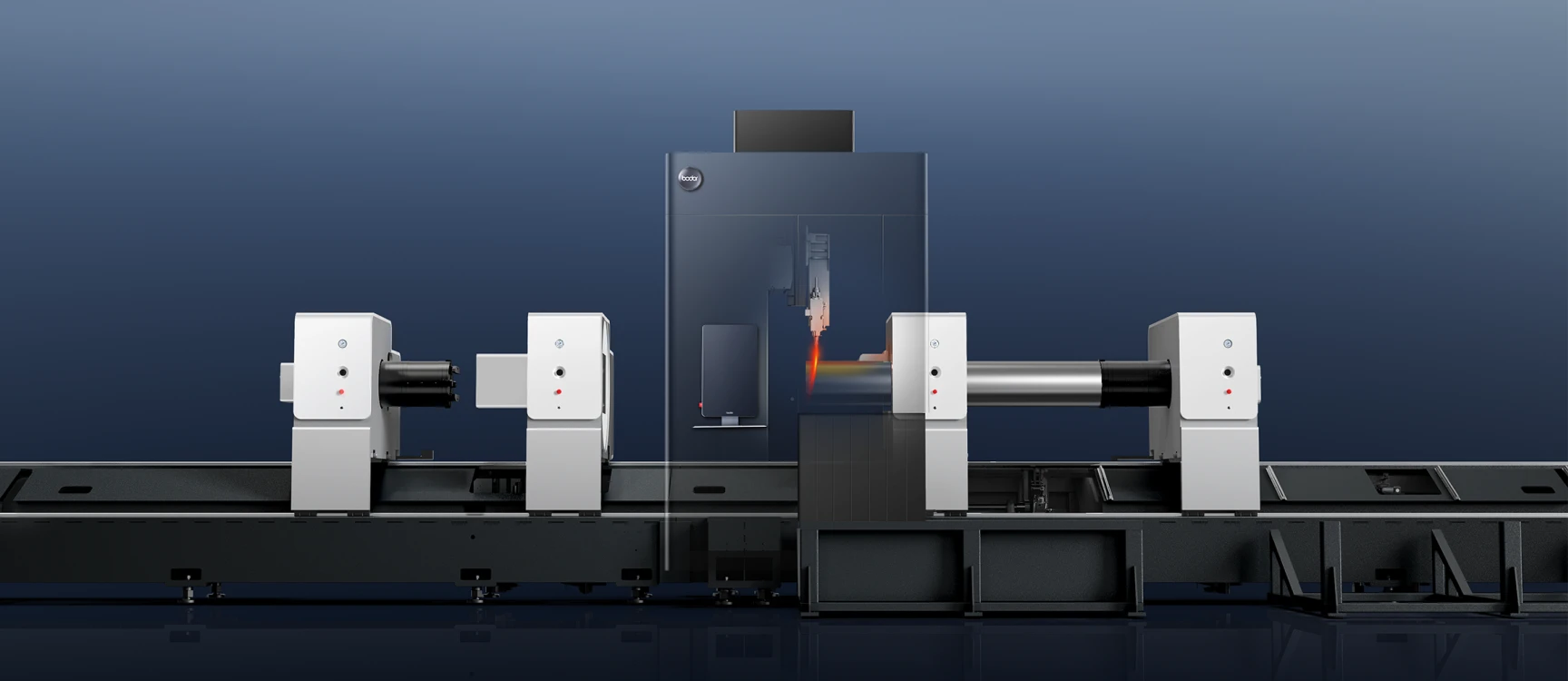

Intelligent switching of cutting modes for all processing scenarios
Depending on the working conditions, the four chucks achieve intelligent matching and automatically switch processing modes, perfectly adapting to any processing scenario to ensure optimal processing results.

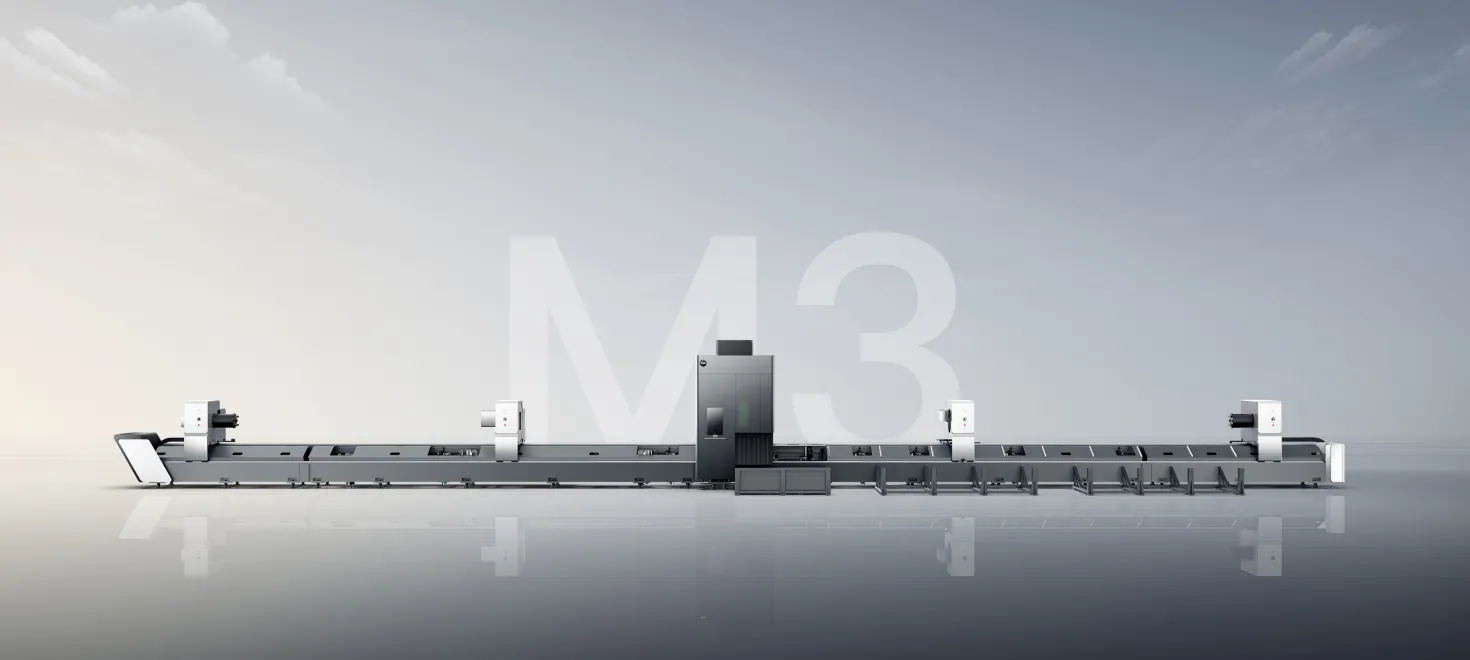

*The M3 model is shown in the image.
Extra-large cutting range
With the square-round mandrel structure, the M Series allows cutting round tubes with a maximum diameter equal to the maximum side length of square tubes, offering users more flexible processing options.
Protection over the edge of the tubes
Self-developed servo tracking sensors and path avoidance algorithms can accurately detect obstacles at tube edge position changes and plan the obstacle avoidance path in advance to significantly reduce the risk of laser head collision.
Flexible adaptation of weld seam identification
*optional
Equipped with a high-sensitivity ultra-clear camera and AI self-learning function, it accurately identifies weld seam positions, allowing for undercut avoidance and compensation.
5-year warranty
